设计
| 3.5" 托架数量 |
3 |
| 5.25" 托架数量 |
2 |
| 最大显卡长度 |
410 mm |
| 材料厚度 |
0.7 mm |
| 格式要素 |
Midi-Tower |
| 类型 |
PC |
| 扩展插槽数 |
7 |
| 外部5.25“托架数量 |
2 |
| 最大CPU散热器高度 |
175 mm |
| 侧窗 |
Y |
| 内部3.5英寸托架数量 |
3 |
| 2.5" 托架数量 |
4 |
冷却
| 风扇转速 |
1200 RPM |
| 最大后部风扇 |
1 |
| 最大顶部风扇 |
2 |
| 前部风扇安装 |
2x 140 mm |
| 最大前部风扇 |
2 |
| 支持的后部风扇直径 |
140 mm |
| 安装的后部风扇 |
1x 140 mm |
端口 & 界面
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
mATX / ATX motherboards, 2x USB2.0, 2x USB 3.0, External Drive bays: 2x 5.25", Internal Drive bays: 3 × 3.5″ (1 × 3.5” & 2 × 2.5″) + 2 × 2.5”, Black

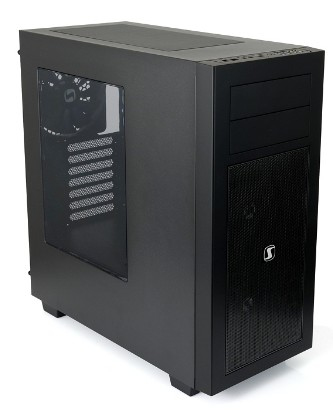

Following the success of the original Aquarius concept, we decided to present a bit smaller model, the new Aquarius M60W. This understated chassis is all about minimalism and build quality. Targeted at hi-end workstations or gaming PCs it’s made from incredibly rigid 0.7 mm steel and features a large side window for showing off the components.
Like it’s bigger sibling the Aquarius M60W also offers extensive support for both AIO and custom watercooling systems. Up to three radiators can be installed including a whopping 360 mm variant in the front.
Simplified internal layout improves airflow and aesthetics of the complete system. Specially formed cover next to the motherboard tray instantly hides all the cables making cable management easier than ever. Another metal cover on the bottom separates the PSU and HDDs from the rest of the components.
Extra width allows the Aquarius M60W to accommodate CPU coolers up to 175mm high and graphics cards up to 410 mm long. It also offers space for up to five SSD/HDD drives (3 × 3.5” and 2 × 2.5”) as well as two 5.25” drive bays which are completely removable if required.
Superior airflow is ensured straight out of the box with 3 × 140mm pre-installed fans. Additional two 120/140mm ones can be installed up top. All the fans are connected through a 5-port hub to a front-mounted 3-step controller which allows setting airflow-noise level just right. Easy to remove and clean dust filters seal the front, top and bottom openings.
<b>Highlights:</b>
- Minimalistic exterior and interior design.
- High quality construction with 0.7 mm steel.
- Simplified interior layout for greater airflow and stealth look.
- Enhanced cable management options with internal cable cover.
- Bottom chamber cover for PSU & HDDs.
- Extensive AIO & custom water cooling support.
- Supports graphics cards up to 410 mm long and CPU coolers up to 175 mm high.
- 3 × 140 mm fans pre-installed, total up to 5 × fans & fan controller included.
- Large window side panel.
