端口 & 界面
| 主机接口 |
Secure Digital |
| 內置式 |
Y |
联网
| 调制 |
OFDM, DSSS |
| 频段 |
2.4 - 2.4897 GHz |

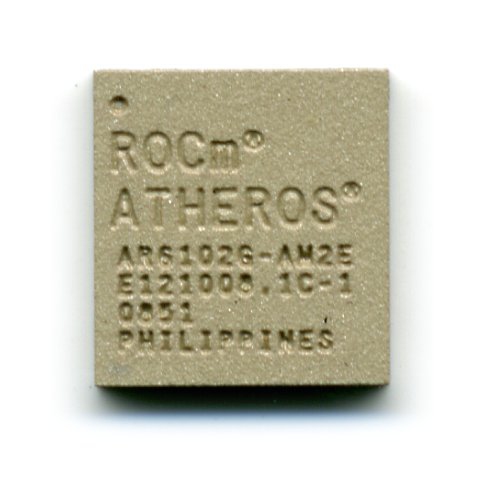

| 芯片组 |
Atheros AR6002 |
无线局域网的特点
| Wi-Fi标准 |
IEEE 802.11g |
| 无线局域网类型 |
IEEE 802.11g, IEEE 802.11b |
| 无线局域网连接 |
Y |
SX-SDPBG-2831-SP SDIO SMT Module 802.11 b/g sampel p. 10p
The Silex SX-SDPBG 802.11b/g wireless module is designed for OEMs who need a highly compact wireless radio/baseband solution with very low power consumption. This surface mount module contains all major components necessary to implement 802.11b/g wireless connectivity, including a radio, baseband processor, power amplifier, low pass filter, and crystal. SX-SDPBG's external diversity antenna option can give you better and wider wireless coverage.
SX-SDPBG is ideal for low power / battery operated devices like portable medical devices, remote controls, RFID readers, navigation, mobile printers, barcode scanners and many more.
The SX-SDPBG is designed to be directly mounted to an OEM's PCB to minimize size and cost. It features an industry-standard SDIO bus interface, and is pre-tuned for ease of design and manufacturing. In order to expedite your product development process, Silex can also provide both hardware and software engineering services, as well as turnkey product design and manufacturing.
