性能
| 数据传输率（最大） |
10 Gbit/s |
| 支持 UASP 协议模式 |
Y |
端口 & 界面
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| USB3.1（第 2 代3.1）Type-C 端口数量 |
1 |
| 主机接口 |
PCIe |
| 內置式 |
Y |

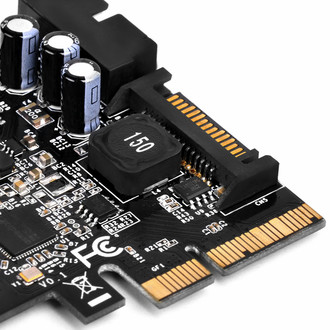

PCI-E 2.0 x2, USB 3.1 Type-C, 2x USB 3.0 Type-A, 10Gbps
- Includes SuperSpeed USB 3.1 external USB Type-C connector

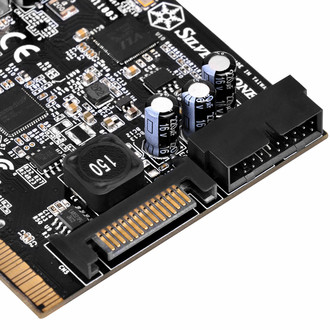

- Includes USB 3.0 internal 19pin connector and two external USB Type-A connectors
- Dedicated fast charging port, compliant with USB Battery Charging (BC) 1.2
- Support PCI-E 2.0 x2 with throughput up to 10Gbps
- Compliant with eXtensible Host Controller Interface (XHCI) specification Revision 1.1
- Compliant with USB Attached SCSI Protocol (UASP) Revision 1.0

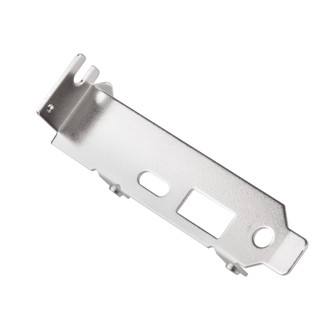

- Includes optional low profile slot cover for supporting low profile cases

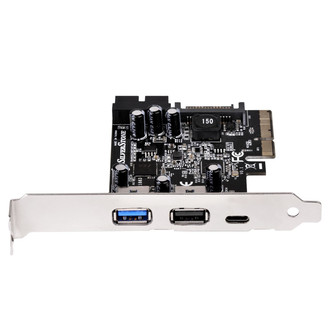

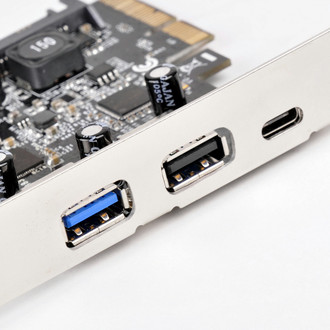

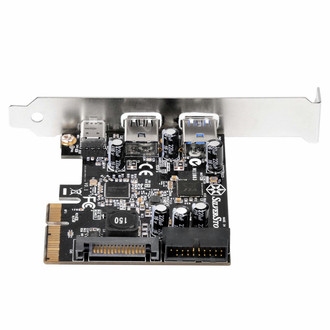

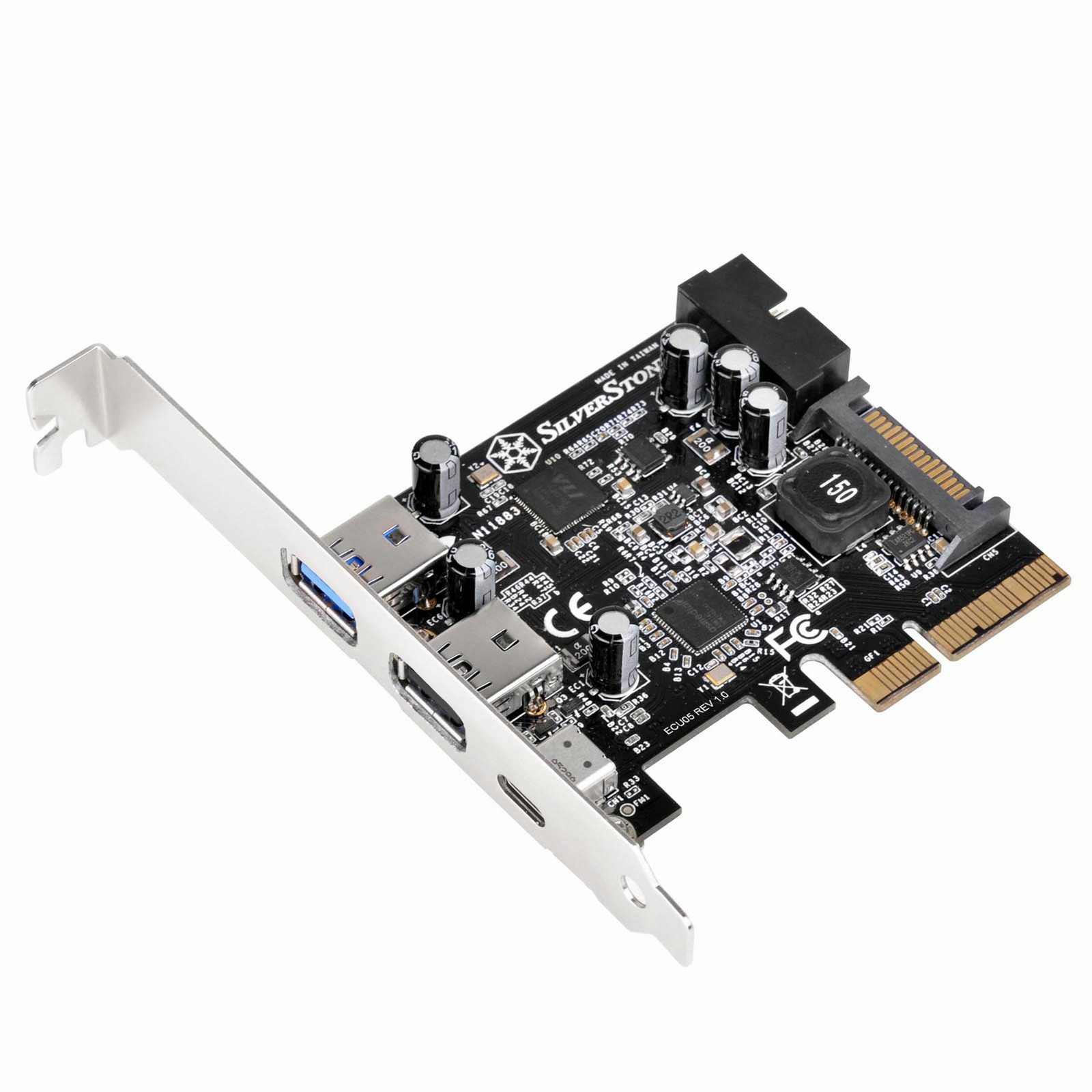

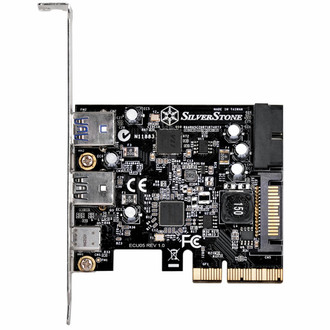

The SilverStone ECU05 is a PCI-E 2.0 x2 expansion card with reversible USB 3.1 Type-C and USB 3.0 ports. Its single USB 3.1 Type-C port is capable of fully utilizing PCI-E 2.0 x2 slot for up to 10Gbps bandwidth, which is twice the USB 3.0 performance for offering excellent stability when multiple external USB devices are in use simultaneously. ECU05 also has additional two external USB 3.0 Type-A ports and an internal 19pin USB 3.0 connector to provide your system with five total added USB ports. For fast charging, one of the Type-A ports (black) meets USB Battery Charging (BC) 1.2 standard to deliver quick and safe charging to your mobile devices. Finally, the ECU05 supports UASP (USB Attached SCSI Protocol) for enhanced performance, so operating systems with XHCI (eXtensible Host Controller Interface) can easily detect and install ECU05 without the need for any drivers.
