Silverstone SST-SA022 Internal mini SAS

Expansion Card, x2 Mini-SAS-SFF-8087, x2 Mini-SAS-SFF-8088, 48Gbit/s <b>Expansion Cards</b> SA022

- Supports external mini-SAS SFF-8088 26-pin sockets to drive enclosure
- Supports internal SFF-8087 36-pin device connector to host terminal
- Compatible with most major SAS host cards or motherboards
- Concurrent transfer speed up to 48Gbit/s
- Converts internal SAS/SATA port to external interface
- Includes standard expansion slot bracket

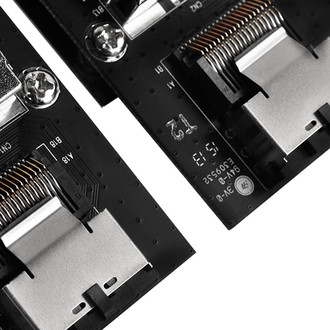

SilverStone created a series of Mini-SAS adapter designed to satisfy server users’ need for constant drive expansion. SA011 or SA022 can convert a SFF-8087 connector to a SFF-8088 connector and support all internal SAS/SATA interface from supported controller card, motherboard, and standard external SAS adapter based on SFF-8087 connector. With SFF-8088 connector connected to external storage devices such as SilverStone’s own TS431S or RS831S, SA011/SA022 can easily enable simultaneous access to four or eight drives with high bandwidth up to 24Gbit/s or 48Gbits/s.
