重量和尺寸
| 风扇直径 |
120 mm |
| 管长 |
310 mm |
| 风扇厚度 |
25 mm |
| 散热器深度 |
278 mm |
| 散热器高度 |
45 mm |
| 散热器宽度 |
124 mm |
技术细节
| 处理器插座 |
Socket FM1, Socket AM3, Socket FM2, Socket AM2 |
| 风扇速度（最大） |
2500 RPM |
| 风扇速度（最小） |
1500 RPM |
| 噪音水平 |
33.5 dB |
| 风扇连接器 |
4-pin |
| 最大气流 |
92.5 cfm |
| 散热器 |
Y |
| 风扇 |
Y |
| 水泵电机转速 |
2500 RPM |
| 风扇数量 |
2 fan(s) |
能量控制
| 泵电压 |
12 V |
| 风扇电流 |
0.3 A |
| 风扇电压 |
12 V |
| 泵电流 |
280 mA |
设计
| Tube material |
FEP |
| 水阻块材料 |
Copper |
| 散热器材质 |
Aluminium |

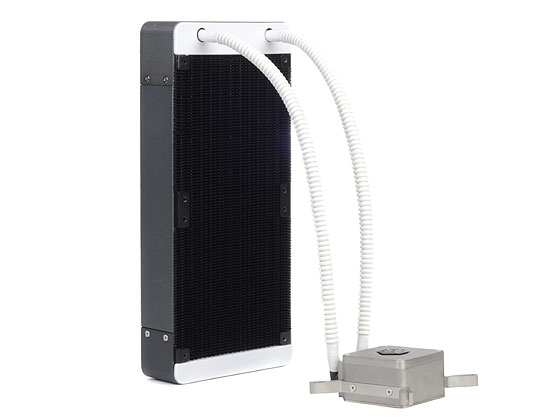

Tundra TD02, Intel/AMD Socket, 1501g
The Tundra TD02 is SilverStone’s first all-in-one liquid cooler and is a breakthrough in a market segment filled with similar-looking products. Its unique full alloy water-block is constructed with copper base and aluminum body for better durability compared to plastic-built competitions. The block also has a patented design that eliminates screws in its construction to provide excellent cooling performance and integration of mounting bracket for easy installation. The radiator has another patented design that utilizes brazing fins similar to those used in top air coolers for increased heat transfer efficiency by up to 40% over traditional radiators. With it fully assembled, factory filled and sealed, the TD02 can be used immediately with no need to refill. For those looking to finally have a unique all-in-one liquid cooler that is durable and well constructed, the TD02 is definitely it.
SPECIAL FEATURES
- Easy installation with aluminum clips and steel back-plate.
- Maintenance free, no refill required.
- Dual auto adjustable 120mm PWM fans included.
- Durable full alloy water-block for improved reliability.
- Patented brazing fins radiator increase cooling efficiency by 40%.
- Socket LGA775/1150/1155/1156/1366/2011/AM2/AM3/FM1/FM2.
