设计
| 3.5" 托架数量 |
1 |
| 5.25" 托架数量 |
2 |
| 内部3.5英寸托架数量 |
4 |
| 2.5" 托架数量 |
1 |
| 侧窗 |
Y |
| 格式要素 |
Mini-Tower |
| 类型 |
PC |
| 扩展插槽数 |
4 |
| 最大PSU长度 |
180 mm |
| 最大CPU散热器高度 |
165 mm |
| 最大显卡长度 |
336 mm |
冷却
| 最大前部风扇 |
1 |
| 支持的后部风扇直径 |
120 mm |
| 最大后部风扇 |
1 |
端口 & 界面
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
Micro-ATX/DTX/Mini-ITX, 5.25"x2, 3.5"x4, 2.5"x1, 1x180mm fan 700/1200rpm 18/34dBA, USB 3.0x2, audio in/out, 5.3kg, Black

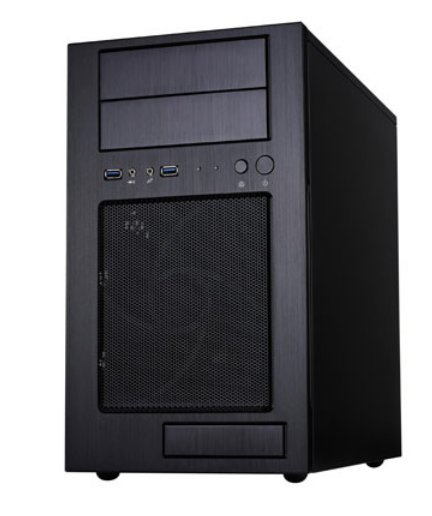

In 2006, SilverStone launched the Temjin TJ08, an impressive micro-ATX tower case with then unheard of dual 120mm fan configuration. It helped pioneered the idea of big tower cooling performance in small packages. Five years later, improved technology and design has enabled SilverStone engineers to create another pioneering small tower case in the TJ08 Evolution (TJ08-E). To improve cooling performance, a class leading “Air Penetrator” 180mm fan was installed behind the front panel to create virtual airflow tunnel with positive air pressure, which also improves quietness and dust prevention.
Standard enthusiast features retained or improved include removable motherboard tray and top panel, CPU back plate cutout, all black painted interior, removable filters for all intake vents, and beautifully finished aluminum front panel.
Features unique to the TJ08-E are its ability to accommodate long cables from high-end power supply and storage room for one 2.5” hard drive and up to five 3.5” hard drives. If you are looking for a classic, cleanly styled premium micro-ATX tower with the latest chassis construction technology to house top-of-the-line components, the TJ08-E is it.
