数据传输
| MAC 地址表 |
1024 entries |
| 存储转发 |
Y |
| 吞吐量 |
100 Mpps |
性能
| 缓冲区大小 |
768 KB |
| 即插即用 |
Y |
| 睡眠模式 |
Y |
联网
| 端口镜像 |
Y |
| 广播风暴控制 |
Y |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 速率限制 |
Y |
| 链路汇集 |
Y |
| 连线运作识别 |
Y |
| 电缆传输距离识别 |
Y |
| 支持 MAC 地址自动学习（auto-learning）功能 |
Y |
| 支持 MAC 地址自动年龄更新（auto-aging）功能 |
Y |
| 网络标准 |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 流量控制支持 |
Y |
| 动态主机配置协议客户 |
Y |
| 全双工传输 |
Y |
设计
| 外壳材料 |
Plastic |
| 液晶显示器指示灯 |
Link, Power |
| 认证 |
CE, RoHS |
| 机架安装 |
N |
能量控制
| 功耗（一般操作） |
3.1 W |
| 功耗（最大） |
4.5 W |
| 交流电（AC）输入电压 |
5 V |
| 插头类型 |
Type C (Europlug) |
| 输入电流 |
1 A |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
5 |
| 快速以太网（铜缆）端口数量 |
5 |
| DC-IN插口 |
Y |
| 基本交换 RJ-45 以太网端口类型 |
Fast Ethernet (10/100) |
| 以太网铜缆技术 |
100BASE-TX |
重量和尺寸
| 深度 |
85 mm |
| 重量 |
148 g |
| 宽度 |
155 mm |
| 高度 |
25 mm |
另外
| 产品色彩 |
Black, White |
| 数据传输率（最大） |
100 Mbit/s |
| 包括 AC 适配器 |
Y |

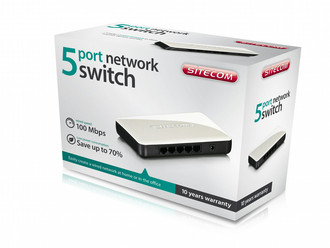

LN-118 Fast Ethernet Switch 5 Port
Create a wired home network with this network switch with 5 Fast Ethernet Ports
- Wired speed: up to 100 Mbps
- 5 Fast Ethernet Ports: connect up to 5 devices
- Fully Plug and Play: no installation or configuration necessary
- Green technology: saves up to 70% of power through stand-by mode, cable length detection and smart traffic routing to active ports only
This network switch makes it possible to connect up to 5 networked devices and allows files and peripheral devices to be easily shared between all connected users. The switch has a processor that ensures the data is intelligently transferred between the computers, so that a highly reliable transfer rate of 100 Mbps is guaranteed. The switch is extremely easy to use and is fully Plug and Play, with no installation or configuration necessary.
The built-in power saving function saves up to 70% of energy. Three components allow for an efficient power usage: no traffic is routed to inactive ports, the switch automatically changes to standby when the connected devices are turned off and finally, the cable length detection identifies the distance to the connected devices and adjusts the power use.
This switch comes with Sitecom’s extensive 10 Year Warranty. Simply activate the long-term warranty by registering your product within 3 weeks of purchase.
