其他功能
| 支持数据传输率 |
Ethernet: 10/100 Mbps |
| 安全 |
UL1950, CSA/NTRL 22.2 No. 950, LVD/EN60950 (TUV/GS), IEC60950 (CB) |
| 开放空间最大射程 |
510m @ 802.11a\n525m @ 802.11g\n515m @ 802.11b\n |
| 遵守工业标准 |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3af |
| 网路功能 |
Fast Ethernet, Wireless LAN |
协议
| 媒体接入协议 |
CSMA/CA |
| 管理协议 |
Telnet, TFTP, SNMP |
端口 & 界面
| 布线技术 |
10BASE-T, 100BASE-TX |
性能
| 管理平台 |
Web-based, CLI |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| 用户数量 |
64 user(s) |
| 调制 |
16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK |
| 频段 |
2.4/5 GHz |
| 频道/通道 数量 |
13 channels |
安全
| 安全特性 |
- Disable SSID Broadcast\n- MAC address filtering\n- 64 VLANs |
天线
| 天线类型 |
External |
| 天线接口类型 |
RP-MMCX |

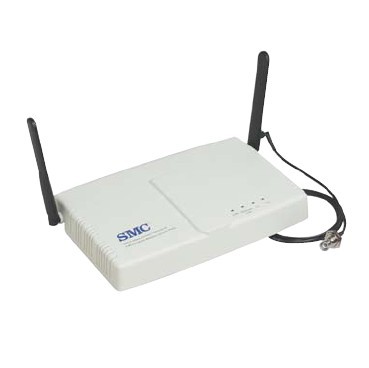

EliteConnect Universal 2.4GHz/5GHz Wireless Access Point
The SMC2555W-AG Universal 2.4GHz/5GHz Wireless Access Point is a tri-mode Access Point that provides the most expanded user bandwidth available. Up to 64 wireless clients can connect to the SMC2555W-AG to transfer data at speeds up to 15 times faster than previous wireless devices. The SMC2555W operates seamlessly in the 5 GHz and2.4GHz frequency spectrums, supporting the 802.11b and the newer, faster 802.11g and 802.11a wireless standards. For security, the Access Point supports enterprise-level advanced authentication and encryption, including Wi-Fi Protected Access (WPA), up to 152-bit WEP encryption, 802.1x authentication access control with key rotation (MD5, EAP-TLS per user per session key, EAP-TTLS per user per session key, session key and broadcast key rotation, and PEAP). For offices, schools, or public hotspots that already use 802.11b devices, the SMC2555W-AG is a great way to expand existing networks and enable more users to communicate with one another to access data and share an Internet connection.
