其他功能
| 支持数据传输率 |
Ethernet: 10/100 Mbps |
| 安全 |
UL1950-3, CSA 950-95, EN60950 |
| 机架安装 |
N |
| 开放空间最大射程 |
515m @ 802.11b\n525m @ 802.11g |
| 遵守工业标准 |
IEEE 802.11g, IEEE 802.11b, IEEE802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3af |
| 网路功能 |
Fast Ethernet, Wireless LAN |
协议
| 媒体接入协议 |
CSMA/CA |
| 管理协议 |
Telnet, TFTP, SNMP |
端口 & 界面
| 布线技术 |
10Base-T, 100Base-TX |
性能
| 管理平台 |
CLI, Web-browser |
| 2.4 GHz |
Y |
| 用户数量 |
64 user(s) |
| 调制 |
16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK |
| 频段 |
2.4 - 2.4835 GHz |
| 频道/通道 数量 |
13 channels |
安全
| 安全特性 |
- Disable SSID Broadcast\n- MAC address filtering\n- 16 VLANs |
天线
| 天线类型 |
External (2x) |
| 天线增益水平（最大值） |
2 dBi |
| 天线接口类型 |
R-SMA (male) |
另外
| 输出电源 |
15 - 20 dBm |
| 数据传输率（最大） |
54 Mbit/s |

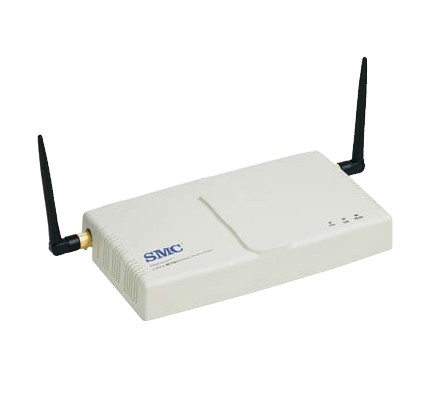

EliteConnect 2.4GHz 802.11g Wireless Access Point
The SMC2552W-G is a 2.4GHz 802.11g wireless access point that supports 54 Mbps/11 Mbps radio transmission, and provides a secure high-performance enterprise class wireless LAN supporting up to 64 users. SMC2552W-G’s reliability, security, manageability and upgradeability make it ideal for any organization’s mobile computing needs. The 802.11b/g mini-PCI modules provides the maximum mobility and flexibility needed for today’s wireless standards. Wireless LAN security is a main concern in enterprise deployment. To address this issue, the SMC2552W-G provides enterprise-level advanced authentication and encryption security features, including Wi-Fi Protected Access (WPA), up to 152-bit WEP encryption, AES, 802.1x authentication access control with key rotation (MD5, EAP-TLS per user per session key, EAP-TTLS per user per session key, session key and broadcast key rotation, and PEAP), support for FUNK Odyssey and Microsoft RADIUS server, up to 256 MAC address authentication, open/share authentication, disabled SSID broadcast, and up to 16 VLANs.
