其他功能
| 支持数据传输率 |
54, 48, 36, 24. 18, 12, 11, 9, 6, 5.5, 2, 1 |
| 连通的液晶显示器 |
Y |
| 安全 |
cCSAus(CSA 22.2 No. 60950-1 & UL60950-1), EN60950-1 (TЬV/GS), IEC60950-1 (CB) |
| 遵守工业标准 |
IEEE802.11b/g, IEEE802.1x, IEEE802.3, IEEE802.3u, IEEE802.3af |
协议
| 媒体接入协议 |
CSMA/CA |
| 管理协议 |
SSH, SNMP (1, 2c, 3) |
端口 & 界面
| 布线技术 |
10BASE-T/100BASE-TX |
| 接口 |
RS-232c, RJ-45 |
性能
| 2.4 GHz |
Y |
| 支持服务质量（QoS） |
Y |
| 用户数量 |
64 user(s) |
| 调制 |
BPSK, CCK, OFDM, QPSK |
| 网上管理 |
Y |
| 频段 |
2.4 GHz |
| 频道/通道 数量 |
13 channels |
另外
| 数据传输率（最大） |
54 Mbit/s |
| 以太网路(RJ-45)连接接口数量 |
1 |

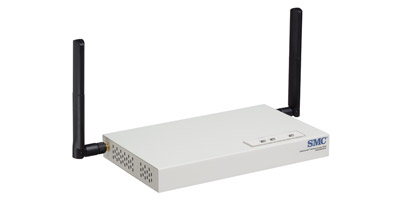

SMC2552W-G2 UK
The EliteConnect™ 2.4GHz 802.11g Wireless Access Point (SMC2552W-G2) provides a secure and high-performance enterprise class wireless LAN supporting up to 64 users. The reliability, security, and manageability of the SMC2552W-G2 make it an ideal solution for any organization looking to satisfy its workforce’s mobile computing needs. New features included in the new SMC2552-G2 include Multiple SSID support, Wireless Distribution System (WDS), VLAN tagging, and Wireless
Multimedia (WMM) support. Multiple SSID’s allow you to create virtual access points with one physical unit. You can set different encryption schemes and VLAN ID’s per SSID which allows for segmentation of user groups and policies. WDS support enables repeating functionality
between other SMC enterprise access points or bridges. Wireless repeating is an alternative to extending your wireless coverage without the need to run Ethernet cables.
Wireless LAN security is a main concern in enterprise deployment. The EliteConnect™ 2.4GHz 802.11g Wireless Access Point provides enterprise level advanced authentication and encryption security features. Security features include the new Wi-Fi Protected Access (WPA and WPA2), up to
152-bit WEP encryption, AES, 802.1x authentication access control with key rotation (MD5, EAP-TLS per user per session key, EAP-TTLS per user per session key, session key and broadcast key rotation, and PEAP), support for FUNK Odyssey and Microsoft RADIUS Server, up to 1024 MAC
address authentication, disabled SSID broadcast, and up to 64 virtual LANs (VLANs) through 802.1x.
The new SMC2552W-G2 also has flexible management features. Webbased network management tools make configuration and remote management of the network simple. IT professionals can also use Command Line Interface (CLI) to quickly and easily manage the device, along with
telnet and SSH. In addition, SMC Networks EliteView Management Software and SNMP (v1, 2c, 3) support in the SMC2552W-G2 allows for easy integration of your wireless LAN with your wired infrastructure. Other management features include Syslog and Event Logging.
If extended range is required, users can choose among the wide selection of SMC 2.4GHz High Gain Antennas. SMC2552W-G2 comes with detachable antennas with R-SMA connectors for optional 2.4GHz High Gain Antenna for extended range and coverage. The new enterprise level
802.11g Wireless Access Point supports Power over Ethernet that adheres to 802.3af standard. Power over Ethernet support reduces installation cost by using standard Category 5 cable to provide power to the Access Point. In addition, SMC2552W-G2 provides anti-theft mechanism by integrating a Kensington security slot on the device. All of the above make SMC2552W-G2 a perfect solution with unparalleled flexibility and investment protection for your wireless LAN deployment.
