数据传输
| MAC 地址表 |
8192 entries |
| 存储转发 |
Y |
| 支持数据传输率 |
10/100 Mbps |
| 交换容量 |
17.6 Gbit/s |
| 最大数据传输率 |
0.1 Gbit/s |
| VLAN 数量 |
255 |
其他功能
| 数据包包传输速度 |
13 Mpps |
| 液晶显示器功率 |
Y |
管理功能
| 支持管理信息基本原则 |
Y |
| 网上管理 |
Y |
| 系统事件日志 |
Y |
| 支持服务质量(QoS) |
Y |
安全
| 静态接口安全 |
Y |
| SSH / SSL支持 |
Y |
| MAC(媒体存储控制)地址过滤 |
Y |
| 存取控制清单(ACL) |
Y |
性能
| 内存类型 |
SDRAM |
| 可堆叠 |
Y |
| 程序包缓冲区内存 |
4 MB |
| 内置存储器 |
64 MB |
| 闪存 |
16 MB |
联网
| IGMP侦听 |
Y |
| 链路汇集 |
Y |
| 生成树协议 |
Y |
| 10G支持 |
N |
以太网电源(PoE)
| 通过以太网(PoE)供电端口数量 |
48 |
| 支持以太网(PoE) |
Y |
环境条件
| 运行温度范围(T - T) |
32 - 104 °F |
端口 & 界面
| 以太网铜缆技术 |
10BASE-T, 100BASE-TX, 1000BASE-T |
| 基本交换 RJ-45 以太网端口数量 |
4 |

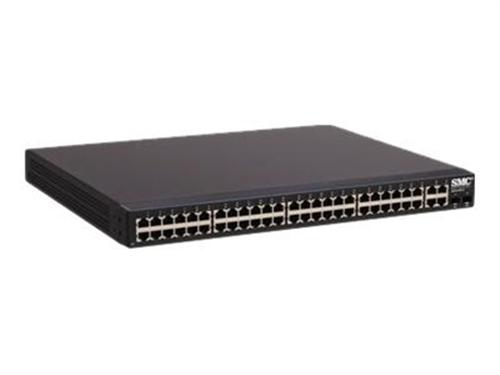

SMC6152PL2 EU 48-Port 10/100 Switch with IP-Clustering and 4 Gigabit-Ports
The SMC6152L2 is a feature rich SMB focused 10/100 switch. The switch has 48 10/100 ports plus 4 gigabit ports for extra uplink capacity. Also it is comes installed with clustering software which will enable grouping together of other SMC6100 or SMC8100 products. This 10/100 workgroup edge switch is designed to handle provide a flexible management architecture including clustering. It is capable of reaching up to 17.6Gbps with a non-blocking single chip switching architecture including the 4 gigabit ports. It provides cost-effective, Ethernet switching for bandwidth-intensive networks that require advanced switching features to ensure smooth transmission of mission critical data. The comprehensive security features include RADIUS, IEEE802.1x, SSH, SSL,TACACS+, and ACL. High port -density and 1U high, this switch is ideal for SMB workgroup installations
