数据传输
| MAC 地址表 |
8192 entries |
| 存储转发 |
Y |
| 支持数据传输率 |
10/100/1000 Mbps |
| 交换容量 |
52 Gbit/s |
| 最大数据传输率 |
1 Gbit/s |
| VLAN 数量 |
255 |
其他功能
| 连通的液晶显示器 |
Y |
| 安装端口 |
26 |
| 远程管理 |
Y |
| 扩展插槽 |
4 x SFP |
| 接受频率 |
47 - 63 Hz |
| 液晶显示器功率 |
Y |
| 无线局域网连接 |
N |
| 电源类型 |
AC/DC |
联网
| 端口镜像 |
Y |
| IGMP侦听 |
Y |
| 链路汇集 |
Y |
| 全双工传输 |
Y |
| 生成树协议 |
Y |
| 10G支持 |
N |
能量控制
| 电源供应数量 |
1 |
| 输入电压 |
100 - 240 V |
安全
| SSH / SSL支持 |
Y |
| MAC（媒体存储控制）地址过滤 |
Y |
| 存取控制清单(ACL) |
Y |
端口 & 界面
| 控制台端口 |
RS-232 |
| 基本交换 RJ-45 以太网端口数量 |
24 |
| SFP模块插槽数量 |
4 |
| DC-IN插口 |
N |
| 以太网铜缆技术 |
100BASE-TX, 1000BASE-T, 10BASE-T |
| SFP/SFP+端口数量 |
4 |
| 千兆以太网(铜)端口数量 |
4 |
性能
| 程序包缓冲区内存 |
0.512 MB |
| 固件可升级 |
Y |
| 可堆叠 |
Y |
环境条件
| 运行温度范围（T - T） |
32 - 122 °F |

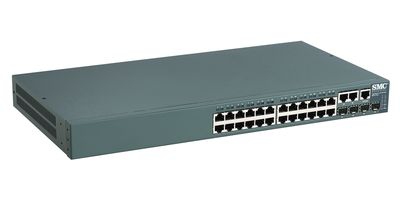

SMC8126L2 TigerSwitch, 26-port, 10/100/1000, Managed Switch with IP Clustering and 4 Gigabit Combo Ports
The SMC8126L2 is a feature-rich 10/100/1000BASE-T standalone managed switch. This gigabit edge switch is designed to handle high bandwidth applications and capable of reaching up to 52Gbps with a non-blocking single chip switching architecture. The switch includes IP Clustering supporting up to 32 units from both the SMC61xxL2 and the SMC81xxL2 families. This enables single IP management across the network increasing management efficiency. It also provides cost-effective, gigabit ethernet switching for bandwidth-intensive networks that require advanced switching features: Quality of Service (QoS) with four levels of priority, weighted fair queuing and L2/3/4 IP. With these features the SMC8126L2 switch ensures smooth transmission of mission critical data; VLANs based on frame tags, ports or protocol, support for automatic GVRP LAN registration and Multiple Spanning Tree provides maximum security and bandwidth efficiency. The comprehensive security features include RADIUS, IEEE802.1x, SSH, SSL,TACACS+, and ACL. High port -density and 1U high, this switch is ideal for SMB and enterprise workgroup installations.
