管理功能
| 支持多重播放 |
Y |
| 支持管理信息基本原则 |
MIB II (RFC 1213), MIB (RFC 1493/RFC 2665/RFC 2764), RMON MIB (RFC 1757), RFC 2737, RFC 2742, RFC 2021, RFC 2863, RFC 2618 |
| 系统事件日志 |
Y |
| 网上管理 |
Y |
| 支持服务质量（QoS） |
Y |
数据传输
| MAC 地址表 |
32 entries |
| 存储转发 |
Y |
| 支持数据传输率 |
10/100/1000 Mbps |
| 最大数据传输率 |
1 Gbit/s |
其他功能
| 连通的液晶显示器 |
Y |
| 管理平台 |
Telnet/SLIP/HTTP/SNMP |
| 槽式 |
SFP transceiver |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
50 |
| SFP模块插槽数量 |
4 |
| 控制台端口 |
RS-232 |
| SFP/SFP+端口数量 |
4 |
设计
| 安全 |
UL / CUL (UL 60950-1, CSA 22.2 NO60950-1); CB (IEC60950-1); CSA/CUS (CSA 22.2. NO 60950-1 & UL60950-1) |

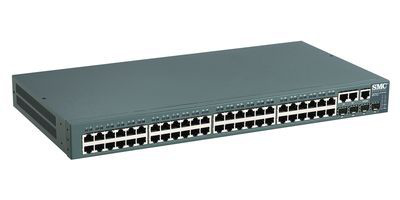

50-port 10/100/1000 Managed Switch with IP Clustering and 4 Gigabit combo ports
The SMC8150L2 is a feature-rich 10/100/1000BASE-T standalone managed switch. This gigabit edge switch is designed to handle high bandwidth applications and capable of reaching up to 100Gbps with a non-blocking single chip switching architecture. The switch includes IP Clustering supporting up to 32 units from both the SMC61xxL2 and the SMC81xxL2 families. This enables single IP management across the network increasing management efficiency. It also provides cost-effective, gigabit ethernet switching for bandwidth-intensive networks that require advanced switching features: Quality of Service (QoS) with four levels of priority, weighted fair queuing and L2/3/4 IP. With these features the SMC8150L2 switch ensures smooth transmission of mission critical data; VLANs based on frame tags, ports or protocol, support for automatic GVRP LAN registration and Multiple Spanning Tree provides maximum security and bandwidth efficiency. The comprehensive security features include RADIUS, IEEE802.1x, SSH, SSL,TACACS+, and ACL. High port -density and 1U high, this switch is ideal for SMB and enterprise workgroup installations.
