能量控制
| 功率因数 |
0.99 |
| 输入工作电压（最大值） |
280 V |
| 输入工作电压（最小值） |
181 V |
| 紧急电源关闭(EPO) |
Y |
| 电源输入频率 |
50/60 Hz |
| 输出功率（瓦特－安培） |
9000 VA |
| 输出工作电压（最小值） |
200 V |
| 输出工作电压（最大值） |
240 V |
| 输出功率 |
7200 W |
设计
| 机架容量 |
3U |
| 格式要素 |
Rackmount/Tower |
| 显示器 |
LCD |
端口 & 界面
| 交流电（AC）插座类型 |
Terminal |
| 调制解调器 (RJ-11)接口 |
1 |
| 电源插头 |
Terminal |
电池
| 电池技术 |
Sealed Lead Acid (VRLA) |
| 电池充电时间 |
6 h |
环境条件
| 运行湿度范围(H-H) |
0 - 90% |
| 储存温度范围 (T-T) |
-15 - 50 °C |
| 储存相对湿度范围（H - H） |
0 - 90% |
认证标准
| 安全 |
EN 62040-1 (TÜV-GS certified) EN 62040-2 |
| 认证 |
CE, TÜV-GS, C-Tick, IP20 |
重量和尺寸
| 深度 |
623 mm |
| 重量 |
19500 g |
| 宽度 |
261.2 mm |
| 高度 |
440 mm |
性能
| 噪音水平 |
55 dB |
| 冷却方式 |
Active |
| 电源保护功能 |
Overload, Short circuit |
| 浪涌保护功能 |
Network |
另外
| 产品色彩 |
Grey |
| RS-232接口 |
1 |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 运行温度范围（T - T） |
0 - 40 °C |

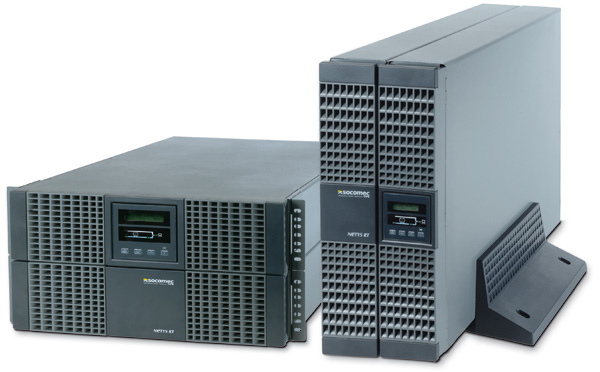

NETYS RT 9000VA
Simple to install.
- IEC input and output connections (1100‑3000 VA) or terminal input and output connections with built-in magnetothermal input switch (5000-11000 VA).
- Compact footprint for installation in rack cabinets.
- Attractive design.
Easy to use.
- No configuration necessary on first startup.
- Wide range of communication protocols for integration into LAN networks or Building Management Systems (BMS).
- Clear LED interface with buzzers that immediately indicate the operating status of the UPS, even for less specialist users (1100‑3000 VA).
- LCD display with menu available in 6 languages (5000-11000 VA).
Meets practical needs.
- Online double conversion technology with sinusoidal waveform, completely filters out all disturbances from / to the mains power supply and ensures maximum protection of the utility.
- Modular battery extension (EBM) to meet all back-up time requirements, even after installation.
- Possibility of 1+1 parallel redundant configuration to maximise the availability of critical utilities, even in the event of a module breakdown (5000‑11000 VA).
