端口 & 界面
| 集成 USB 电缆 |
N |
| 接口类型 |
ExpressCard |
| 麦克风/音频输入插孔 |
N |

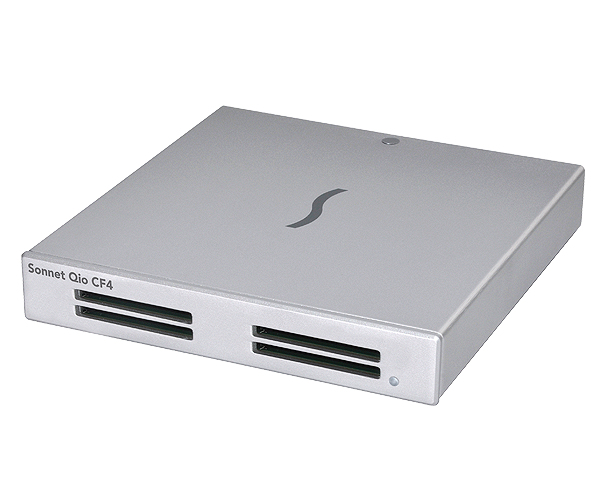

Qio CF4 (with ExpressCard/34)
<b>Key Benefits</b>
- Four Slots—Enables you to insert and ingest files from four cards at the same time
- Fast Interface—Delivers superior performance using PCI Express® 2.0 bus interface; available aggregate bandwidth of up to 400 MB/sec.
- Fast Aggregate Ingest Speed (four cards concurrently)—PCIe Interface for Fast Storage (not Qio-Connected): 400MB/s; ExpressCard/34 Interface for Fast Storage (not Qio-connected): 200MB/s; ExpressCard/34 Interface to Qio-connected SATA drives: 100MB/s
- Mac and Windows Compatible—Qio CF4 supports your workflow, regardless the platform you've chosen
- Built-in SATA Connections—Integrated 6Gb/s SATA host controller with two eSATA ports supports two Fusion F2QR or F3 Hardware RAID SATA storage systems, or supports other compatible SATA drive enclosures.
- Small and Rugged—Strong aluminum case measures just 5.9" x 6.2" x 1"
- Security—Slot for Kensington and similar security locks to secure the device and deter theft
<b>CompactFlash to the Power of Four</b>
CompactFlash (CF) memory cards are rugged, offer high storage capacities, and can deliver fast data transfers; that's why HD camcorders from RED® and Canon®, as well as DSLR cameras from Canon and Nikon®, use them. Even as the card specs have improved, moving ever-larger files from from cards to computer has remained mostly a low speed affair. If you have ever ingested files from CF cards, you know what we mean. Plug in the camera or a USB 2.0 reader, grab a cup of coffee and relax while all those gigabytes of data are transferred at around 30 MB/s. But what if you need faster transfers? Or want to ingest files from more than one card at a time? Sonnet's Qio CF4 is the answer to all of these questions.
This Sonnet pro media reader distills the feature set of the award-winning original Qio universal media reader but designed specifically for use with CF media cards. Providing a cost-effective, high-speed multi-slot alternative to stand-alone card readers for pro videographers and photographers alike, Qio CF4’s four CF slots enable you to ingest files faster and more efficiently, with aggregate ingest speed up to 400 MB/sec., much faster than USB 2.0 adapters are capable.
<b>Mac & PC Compatibility</b>
For complete Mac and PC compatibility list, visit product's webpage.
<b>Package Contents</b>
Qio CF4 professional media reader, Sonnet PCIe Bus Extender ExpressCard/34 adapter, universal power supply with 10-foot cable, 1-meter external PCIe x1 interface cable, carrying case, User’s Guide
