端口 & 界面
eSATA端口数量 |
2 |
接口类型 |
ExpressCard |
Qio E3 with ExpressCard/34 + PCIe bus extender ExpressCard/34 adapter, 1m PCIe x1 cable
<b>Key Benefits</b>
- Slot Support—Support for Sony® SxS, and PCIe-based ExpressCard/34 cards
- Fast—Uses PCI Express® 2.0 bus interface to deliver superior performance; aggregate available bandwidth of 400 MB/sec.
- SxS Aggregate Ingest Speed (3 cards concurrently)—PCIe ExpressCard Interface for Fast Storage (not Qio-Connected): 300MB/s; ExpressCard/34 Interface for Fast Storage (not Qio-connected): 200MB/s; ExpressCard/34 Interface to Qio-connected SATA drives: 100MB/s
- Mac and Windows Compatible—Qio E3 supports your workflow, regardless the platform you've chosen
- Built-in SATA Connections—Integrated SATA host controller, based on Tempo SATA 6Gb/s PCIe 2.0 controller with two eSATA ports, supports two Fusion F2QR Hardware RAID SATA storage systems, or supports other compatible SATA drive enclosures.
- Small and Rugged—Strong aluminum case measures just 5.9" x 6.2" x 1"
- Security—Slot for Kensington and similar security locks to secure the device and deter theft
- Package includes Qio E3, PCIe or ExpressCard/34 interface adapter, interface cable, universal power supply, carrying case, and user's guide
<b>SxS to the Power of Three</b>
Sony’s popular XDCAM EX™ professional HD camcorders use high-performance SxS memory cards, which share the same interface and shape as ExpressCard/34 adapter cards. This shared form factor and connector make ingesting footage from your SxS media a simple task in ExpressCard slot-equipped notebook computers—insert the card and go. If your computer doesn't have an ExpressCard slot, you could just plug in the camera or a specialized USB 2.0 SxS reader, grab a cup of coffee and relax while all those gigabytes of data are transferred at around 30 MB/s. But what if you need faster transfers? Or want to ingest files from more than one card at a time? Sonnet's Qio E3 is the answer to all of these questions.

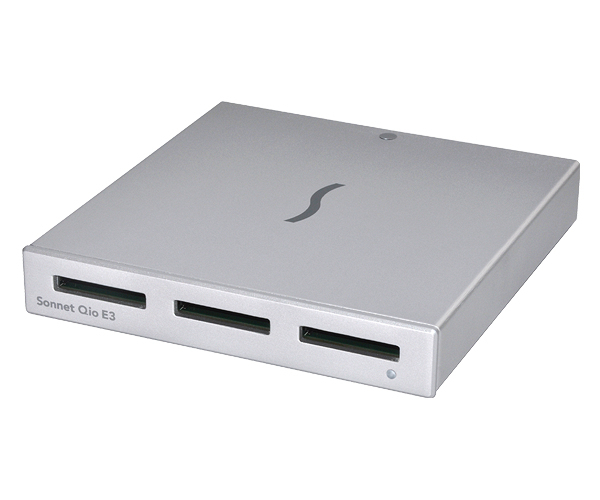

This Sonnet pro media reader distills the feature set of the award-winning original Qio universal media reader but designed specifically for use with SxS media cards. Providing a cost-effective, high-speed multi-slot alternative to stand-alone card readers for videographers and studios alike, Qio E3’s three SxS slots enable you to ingest files faster and more efficiently, with aggregate ingest speed up to 300 MB/sec., much faster than USB 2.0 adapters are capable.
<b>Mac & PC Compatibility</b>
For complete Mac and PC compatibility list, visit product's webpage.
<b>Package Contents</b>
Qio E3 universal professional media reader/writer, Sonnet PCIe Bus Extender ExpressCard/34 adapter, Universal power supply with 10-foot cable, 1-meter external PCIe x1 interface cable, Carrying case, User’s Guide
