处理器
处理器频率 |
550 MHz |
图形适配器随机存取存储器数字/模拟转换器 |
400 MHz |
图形处理器系列 |
NVIDIA |
CUDA |
Y |
内存参数
图形适配器内存类型 |
GDDR3 |
数据宽度 |
128 bit |
内存时钟速度 |
1340 MHz |
独立显卡适配器內存 |
1 GB |
性能
DirectX版本 |
10.1 |
OpenGL版本 |
3.2 |
最高着色模型版本 |
4.1 |
PhysX |
Y |
集成电视调谐器 |
N |
HDCP |
Y |
端口 & 界面
接口类型 |
PCI Express 2.0 |
DVI-I接口数量 |
1 |
HDMI端口数量 |
1 |
VGA(D-SUB)端口数量 |
1 |
另外
图形处理器 |
GeForce GT 240 |
双dvi(互应式数字视频) |
Y |

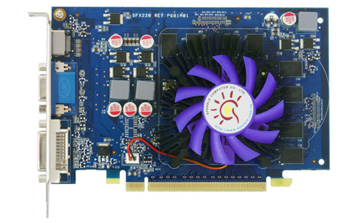

GeForce GT240, 1024MB DDR3, 128-bit, PCI-E, DirectX 10.1
NVIDIA CUDA™ Technology
NVIDIA CUDA™ Technology is the world’s only C language environment that provides access to processing power of NVIDIA GPUs. It enables developers to utilize NVIDIA GPUs to solve the most complex computation-intensive challenges such as oil and gas exploration, financial risk management, product design, medical imaging, and scientific research.
NVIDIA PhysX™ Technology3
GeForce GPU support for NVIDIA PhysX technology, enabling a totally new class of physical gaming interaction for a more dynamic and realistic experience with GeForce.
Dynamic Contrast Enhancement & Color Stretch
Provides post-processing and optimization of High Definition movies on a scene-by- scene basis for spectacular picture clarity.
Microsoft® Windows® 7 Support
Windows 7 is the next generation operating system that will mark a dramatic improvement in the way the OS takes advantage of the graphics processing unit (GPU) to provide a more compelling user experience. By taking advantage of the GPU for both graphics and computing, Windows 7 will not only make today’s PCs more visual and more interactive but also ensure that they have the speed and responsiveness customers want.
Full Microsoft® DirectX® 10.1 Support
World's first DirectX 10.1 GPU with full Shader Model 4.1 support delivers unparalleled levels of graphics realism and film-quality effects.
NVIDIA® PureVideo™ HD Technology
The combination of high-definition video decode acceleration and post-processing that delivers unprecedented picture clarity, smooth video, accurate color, and precise image scaling for movies and video. Feature requires supported video software. Features may vary by product.
Dual-stream Hardware Acceleration
Supports picture-in-picture content for the ultimate interactive Blu-ray and HD DVD movie experience.
Dual-link HDCP Capable3
Designed to meet the output protection management (HDCP) and security specifications of the Blu-ray Disc format, allowing the playback of encrypted movie content on PCs when connected to HDCP-compliant displays.
Dual Dual-link DVI Support
Able to drive the industry’s largest and highest resolution flat-panel displays up to 2560x1600 and with support for High-bandwidth Digital Content Protection (HDCP).
HDMI 1.3a Support
Fully integrated support for HDMI 1.3a including xvYCC, Deep color and 7.1 digital surround sound.
PCI Express 2.0 Support
Designed for the new PCI Express 2.0 bus architecture offering the highest data transfer speeds for the most bandwidth-hungry games and 3D applications, while maintaining backwards compatibility with existing PCI Express motherboards for the broadest support.
