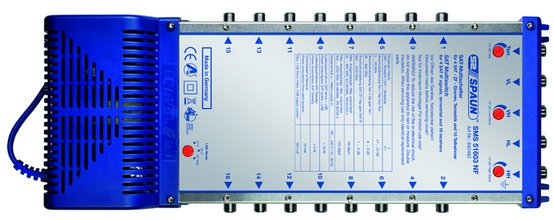

Compact multiswitch for 4 SAT-IF signals @ passive return path & active forward path 16 subscribers
<b>For 6, 8, 12, 16 or 24 subscribers.</b>
<b>SAT IF:</b>
- The new SAT IF amplifiers assure high output levels. Depending on the unit the max. output level according to EN 60728-3 differs between 102 and 108 dBμV.
- Synchronous Level Adjuster for Low- and High Band (0...-12dB).
- This multiswitch series has an integrated standby functionality. If all connected receivers are switched off, the LNB supply voltage and the UB of the SAT IF amplifiers will also be switched off.
- The SAT IF amplifiers have a slope correction of 6dB.
- LNB supply voltage selectable for Quattro or QUAD LNB.
<b>Terrestrial:</b>
- Based on a new terrestrial concept the Premium Class multiswitches are coming with a passive return path for interactive applications (Triple Play).
- Active CATV compatible forward path including InGaP Push-Pull output stage.
- By using sharp cut-off input filter a perfect selection performance will be reached: Terrestrial/SAT > 40dB and SAT/Terrestrial > 45dB.
- The high Receiver/Receiver Isolation will be reached by using the latest directional coupler technology > 36dB/VHF and > 32dB/UHF.
- Level Adjuster (0...-12dB) for the terrestrial forward path.
<b>Miscellaneous:</b>
- Standby function.
- Ground clamp.
