其他功能
连接/工作 LED |
Y |
连通的液晶显示器 |
Y |
风扇 |
40mm |

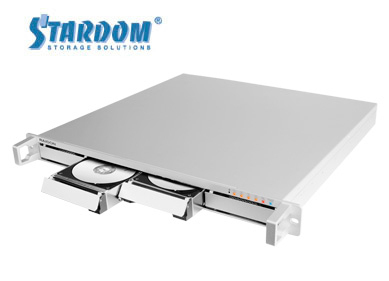

GR7650-4S-SB2, 4x 3.5" SATA HDD, RAID 0/1/3/5/JBOD, USB 2.0, eSATA, 8400g, 1U Rack
1U RAID5 Subsystem for 4x 3,5" SATA HDD, USB2.0 & eSATA interface, support >2.2TB
GR7650 is designed for those who require large capacity and highly reliable data protection. 4 x 3.5" SATA hard drives and a new RAID 5 controller keep GR7650 working without interruption even if a hard drive. It can be changed while the system runs. Even with a USB connection to the computer capacities of more than 2.2TB are recognized – if the computer has a 64-bit OS with GPT. GR7650 is collocated with Web-based GUI as well which is helpful to manage the system and
update firmware freely. Equipped with a buzz and the Web-based GUI to monitor the system, the GR 7650 reports fan failure, critical temperature or hard drive failure by the buzz sound and e-mail.
Features
- Raidsubsystem for expansion and data protection;
- Web based managment;
- 4 SATA hard disk drive with out capacity limitation;
- Largest capacity over 2.2TB (GPT Partition);
- Support RAID 0, 1, 3, 5, JBOD, Spare;
- Support HotSwap - a faild hard drive may be replaced online;
- USB2.0 & eSATA interfae for file transfer;
- LAN interface for managment;
- Case cooling with 2x 40mm fan;
- Internal 200W power supply;
- CE/FCC;
- Scope of supply: GR7650-4S-SB2 with 4 HDD tray, power-;
- USB- and eSATA cable, Software CD, screwbag and miniaturekey.
