技术细节
| 串口数量 |
2 |
| 奇偶校验位 |
Even, Mark, Odd, Space |
| 波特率 |
460.8 Kbit/s |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 静电放电(ESD)保护装置 |
15 kV |
| 远程管理 |
Y |
| 流量控制类型 |
N, RTS/CTS, XON/XOFF |
| 数据位 |
7, 8 |
| 串口类型 |
RS-232 |
| 以太网的数据传输率 |
10, 100 Mbit/s |
软件
| 可支持的服务器操作系统 |
Windows Server 2008 R2, Windows Server 2012 |
能量控制
| 输入电压 |
100 - 240 V |
| 电源类型 |
AC |
| 兼容电源插头类型 |
AU, EU, UK, US |
| 输入电流 |
1.5 A |
设计
| Electrostatic Discharge (ESD) protection (air) |
15 kV |
| 静电放电(ESD)保护装置(接触) |
8 kV |
协议
| 支持网络协议 |
ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet |
另外
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

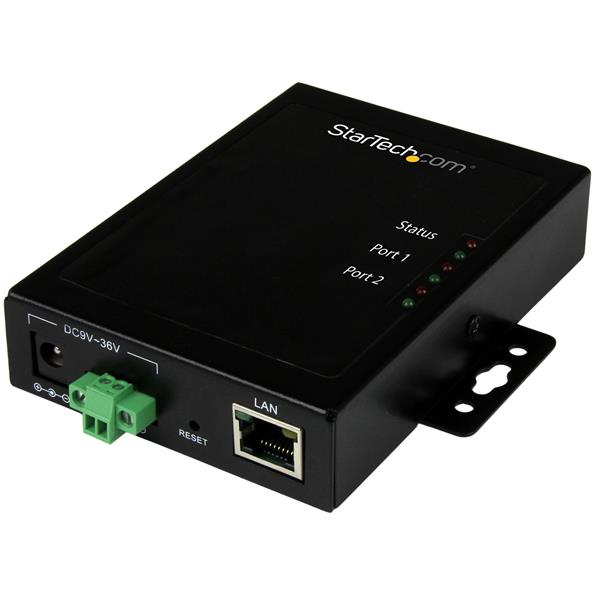

StarTech.com 2 Port Serial-to-IP Ethernet Device Server - RS232 - Metal and Mountable - Serial Device Server - RS232 Serial-Over-IP
This 2-port serial device server is a cost-effective way to remotely connect to and manage two serial devices over your typical IP network. The device server integrates two RS232 ports into a rugged metal housing with an extended operating temperature range, so it’s perfect for factory and industrial settings.
Flexible installation, in a range of environments
If you’re looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.
Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations.
Backup power keeps your devices connected
With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36V DC), and includes a universal power adapter.
Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed.
Completely customizable
This highly customizable device server is easy to configure to suit your application. For easy setup, Windows® users can use the provided Virtual COM port software, or the versatile Web-based interface.
The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux®). Plus, it supports VCOM, TCP, ICMP, IP, TCP, UDP, DHCP, and BOOTP protocols.
The NETRS2322P is backed by a StarTech.com 2-year warranty and free lifetime technical support.
