技术细节
| 以太网的数据传输率 |
10, 100 Mbit/s |
| 流量控制支持 |
Y |
| 数据传输速度 |
0.46 Mbit/s |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 停止位 |
2, 1.5, 1 |
| 串口数量 |
4 |
| 隔离度 |
1 kV |
| 波特率 |
460.8 Kbit/s |
| 串口类型 |
RS-232/422/485 |
| 数据位 |
8, 7, 6, 5 |
| 流量控制类型 |
XON/XOFF, RTS/CTS, DTR/DSR |
协议
| 支持网络协议 |
ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP, SSL, PPPoE, DDNS |

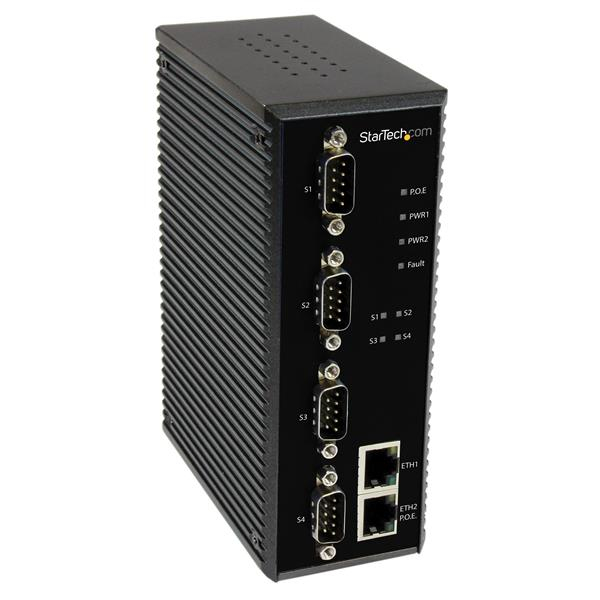

StarTech.com 4 Port Industrial RS-232 / 422 / 485 Serial to IP Ethernet Device Server - PoE-Powered - 2x 10/100Mbps Ports - Serial over IP
The PoE-powered NETRS42348PD 4-Port Industrial Serial Device Server lets you remotely manage up to four industrial RS232/422/485 serial devices over a local or wide area network (LAN/WAN), with redundant power inputs and dual 10/100Mbps Ethernet ports.
To minimize downtime, this intuitive dual Ethernet serial over IP solution maintains connection to your critical equipment by automatically switching to its secondary LAN port within 10 milliseconds of a network failure or disruption.
Ideal for industrial environments, the serial to Ethernet device server accepts wide-range 12-48V DC power input via a terminal block, or through a PoE RJ45 port. Redundant power inputs keep the device server functional in the event of power surges or failures, and when used with a PoE-capable switch or injector, the serial device server can be conveniently installed in locations where terminal block power is unavailable.
This device server supports baud rates up to 460.8Kbps which provides a smooth, high-speed connection to your serial devices. The device server also offers support for HTTPS, SSH and SSL to ensure secure communication, while integrating support for IP, HTTP, ICMP, DHCP, TCP and UDP protocols. You can customize the serial device server to suit your application with versatile browser-based or virtual com port software configuration.
Ensuring performance in harsh environments, this serial device server offers 8KV air, and 4KV contact ESD (Electrostatic Discharge) protection and features a rugged, IP-30 case design that is both DIN rail and wall-mountable.
Backed by a 5-year StarTech.com warranty and free lifetime technical support.
<b>The StarTech.com Advantage</b>
- Maintain serial connectivity during disruptions with redundant power and network inputs
- Suitable for harsh environments with ESD protection and a rugged, metal enclosure
- Mount on DIN rails or on a surface with the attached mounting brackets
