系统要求
| 可支持的服务器操作系统 |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| 可支持的Linux操作系统 |
Y |
| 可支持的Windows操作系统 |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro |
性能
| 支持 UASP 协议模式 |
Y |
| 数据传输率（最大） |
10 Gbit/s |
| 芯片组 |
ASMedia - ASM2142 |
端口 & 界面
| PCI版本 |
3.0 |
| USB3.1（第 2 代3.1）Type-A 端口数量 |
2 |
| 內置式 |
Y |
| 主机接口 |
PCIe |
| 输出接口 |
USB 3.1 |
重量和尺寸
| 深度 |
122 mm |
| 重量 |
50 g |
| 宽度 |
108 mm |
| 高度 |
21 mm |
| 包装盒厚度 |
193 mm |
| 包装重量 |
65 g |
| 包装盒宽度 |
124 mm |
| 包装盒高度 |
30 mm |
环境条件
| 储存温度范围 (T-T) |
-20 - 60 °C |
| 运行湿度范围(H-H) |
20 - 80% |

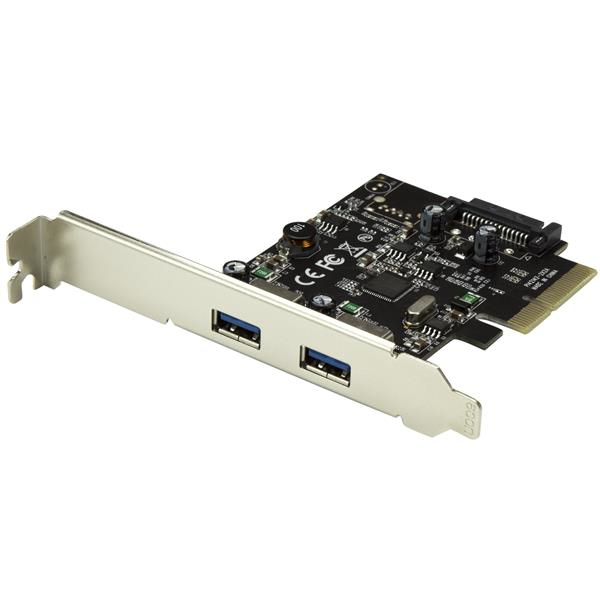

StarTech.com StarTech.com Dual Port USB 3.1 Card – 2x USB-A – 10Gbps per port – Expansion Card – PCI Express USB Card – PCI-e to USB
This USB 3.1 card lets you add two USB Type-A ports to your computer, through a PCI Express slot. It enables you to upgrade your current system by adding two USB 3.1 Gen 2 ports to your computer and giving you access to data transfer speeds up to 10Gbps.
Faster USB performance
By adding 10Gbps USB ports to your computer, you can harness the speed of USB 3.1 Gen 2 and rest assured you’re ready for both current and future high-bandwidth USB-A devices.
With higher data throughput support, this PCI Express USB 3.1 card is a necessity for external drives, drive enclosures, and many other USB 3.1 peripherals. Plus, the USB card includes an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.1 bus-powered devices (500mA for USB 2.0). The card is ideal for use with large external storage solutions.
Compatible with older USB devices
Connecting older peripherals isn’t a problem. This versatile dual-port USB 3.1 card is backward compatible with legacy USB 3.0/2.0 devices that use the common USB Type-A port, so you can eliminate the added expense and aggravation of purchasing new devices.
Easy installation
The USB 3.1 PCIe card is compatible with a broad range of Windows® and Linux® operating systems. Plus, the high-quality card includes both standard-profile and low-profile brackets, making it easy to install in full or small form-factor PCs and servers.
The PEXUSB312A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
