性能
| 带宽 |
10 Gbit/s |
| 支持 UASP 协议模式 |
Y |
| 芯片组 |
ASMedia - ASM2142 |
系统要求
| 可支持的服务器操作系统 |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2016 |
| 可支持的Linux操作系统 |
Y |
| 可支持的Windows操作系统 |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
端口 & 界面
| PCIe版本 |
3.0 |
| USB3.1（第 2 代3.1）Type-A 端口数量 |
2 |
| 內置式 |
Y |
| 主机接口 |
PCIe |
| 输出接口 |
USB 3.1 |
重量和尺寸
| 深度 |
122 mm |
| 重量 |
50 g |
| 宽度 |
108 mm |
| 高度 |
21 mm |
| 包装盒厚度 |
170 mm |
| 包装重量 |
65 g |
| 包装盒宽度 |
142 mm |
| 包装盒高度 |
30 mm |
环境条件
| 储存温度范围 (T-T) |
-20 - 60 °C |
| 运行湿度范围(H-H) |
20 - 80% |
StarTech.com StarTech.com Dual Port USB-C Card – 2x USB-C – USB 3.1 PCI–e Card with SATA – USB 3.1 Expansion Card – PCI Express USB C Card

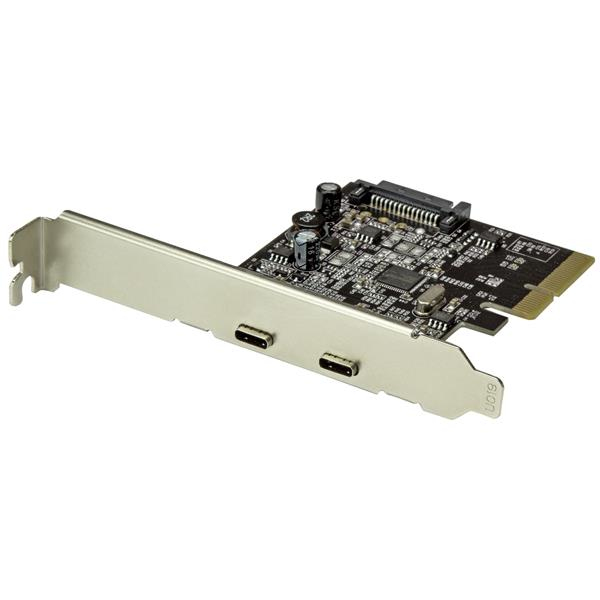

This USB 3.1 card lets you add two USB-C™ ports to your computer, through a PCI Express slot. It enables you to upgrade your current system by adding two USB 3.1 Gen 2 ports to your computer and giving you access to data transfer speeds up to 10Gbps.
With the addition of two USB Type-C™ ports, you can rest assured your computer is compatible with the growing popularity of USB-C peripherals.
Faster USB performance
By adding 10Gbps USB ports to your computer, you can harness the speed of USB 3.1 Gen 2 and rest assured you’re ready for both current and future high-bandwidth USB-C devices.
With higher data throughput support, this USB 3.1 PCIe card is a necessity for external drives, drive enclosures, and many other USB 3.1 peripherals. Plus, the USB card includes an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.1 bus-powered devices (500mA for USB 2.0). The card is ideal for use with large external storage solutions.
Compatible with older USB devices
The card is backward compatible with USB 3.0 (5Gbps) and USB 2.0 (480mbps) devices. You can add the card now for use with newer USB-C devices, while still connecting your existing USB peripherals using a variety of USB-C cables and adapters.
Easy installation
The USB 3.1 card is compatible with a broad range of Windows® and Linux® operating systems. Plus, the high-quality card includes both standard-profile and low-profile brackets, making it easy to install in full or small form-factor PCs and servers.
The PEXUSB312C2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
