产品特点
| 布线技术 |
10/100/1000Base-T(X) |
| 电缆标准 |
Cat6 |
| 电缆屏蔽层 |
F/UTP (FTP) |
| 频率 |
500 MHz |
| 输入阻抗 |
100 Ω |

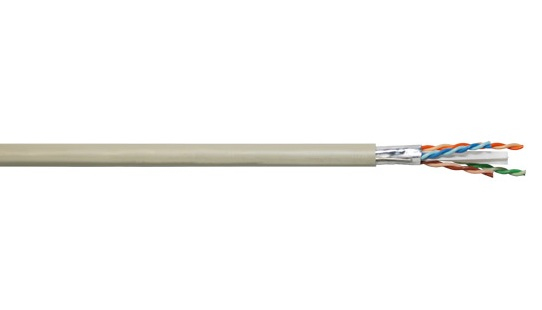

305m, CAT6, F/UTP, 23AWG, 500MHz, Grey
Category 6+ ScTP (F/UTP) cable, with guaranteed performance out to
500 MHz, exceeds ANSI/TIA-568-C.2 for CAT 6 cables. The cable is
UL Verified CAT 6 and has a typical Alien Crosstalk margin of 18 dB. The
cable can be used for 10GBASE-T applications for up to 55 meters per
ANSI/TIA/EIA-TSB-155.
The cable consists of four (4) balanced 23 AWG copper pairs around
a flame retardant cross-web. The core is wrapped with a Mylar backed
aluminum foil. A drain wire is applied longitudinally against the tape. The
cable is then protected with a flexible riser or plenum rated PVC jacket.
Standard features include ColorTip™ circuit identification system and
QuickCount® length marking system measured in both feet and meters.
