端口 & 界面
| USB 端口数量 |
2 |
| 主机接口 |
PCI-E |
| 內置式 |
N |
协议
| 支持网络协议 |
VPI, TCP/UDP/IP, Open MPI, OSU MVAPICH, Intel MPI, MS, MPI, Platform MPI, EoIB, IPoIB, SDP, RDS, SRP, iSER, NFS RDMA, uDAPL |
另外
| 连接方式 |
Wired |
| 巨型帧 |
Y |
| 数据传输率（最大） |
57344 Mbit/s |
| 以太网连接器 |
Y |

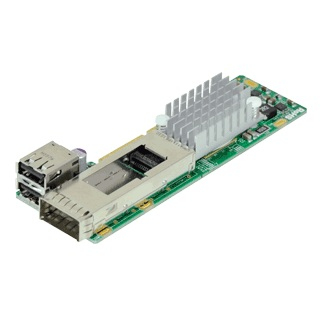

AOC-CIBF-m1, PCI-E 3.0 x8, 1x QSFP, 2x USB 2.0
Compact and Powerful InfiniBand FDR Adapter
The AOC-CIBF-m1 is the most compact, yet powerful, InfiniBand adapter in the market. Based on Mellanox® ConnectX-3 with Virtual Protocol Interconnect (VPI), it provides the highest performing and most flexible interconnect solution for servers used in Enterprise Data Centers and High-Performance Computing. The AOC-CIBF-m1 simplifies the system development by serving both InfiniBand and Ethernet fabrics in one hardware design. The AOC-CIBF-m1 is designed in a small microLP form factor to fit Supermicro Twin server systems.
<b>Key Features</b>
- Single QSFP Connector.
- MicroLP Form Factor.
- PCI Express 3.0 (up to 8GT/s).
- Virtual Protocol Interconnect (VPI).
- 1µs MPI ping latency.
- Up to 56Gbps InfiniBand or 40Gbps Ethernet.
- CPU offload of transport operations.
- Application offload.
- GPU communication acceleration.
- End-to-end QoS and congestion control.
- Hardware-based I/O virtualization.
- Ethernet encapsulation (EoIB).
- RoHS compliant 6/6.
