联网
以太网的数据传输率 |
100, 1000, 10 Mbit/s |
平衡检测及修正 系统 |
Y |
端口 & 界面
光纤通道端口 |
1 |
USB 端口数量 |
2 |
USB版本 |
2.0 |
PCI版本 |
2.0 |
主机接口 |
PCI-E |
內置式 |
Y |
另外
连接方式 |
Wired |
以太网连接器 |
Y |
数据传输率(最大) |
1000 Mbit/s |
PCI-E x8 2.0 (5GT/s), Intel 82599EN 10GbE, USB 2.0

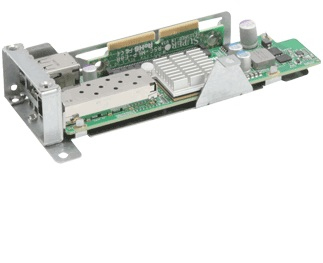

The AOM-CTG-i1SM 10 Gigabit Ethernet Adapter is the most flexible and scalable Ethernet adapter for today's demanding data center environments. Based on the Intel® 10GbE network controller 82599EN, the AOM-CTG-i1SM addresses the demanding needs of the next-generation data center by providing features for virtualization, flexibility for LAN and SAN networking, and proven reliable performance.
<b>General</b>
- Intel® 82599EN 10GbE controller
- Compact size microLP form factor
- Single SFP+ port and dual USB 2.0 ports
- PCI-E x8 2.0 (5GT/s)
- Load balancing on multiple CPUs
- iSCSI remote boot support
- Fibre Channel over Ethernet (FCoE) Support
- Intel® PROSet Utility for Windows® Device Manager
<b>I/O Features</b>
- Intel QuickData Technology: DMA engine that enhances
- Data acceleration and lowers CPU usage
- Direct Cache Access (DCA) to avoid cache misses
- MSI-X support to minimize the overhead of interrupts
- Allowing load-balancing between multiple cores/CPUs
- Tx/Rx IP, SCTP, TCP and UDP checksum offloading
Capabilities (IPv4, IPv6)
- Receive and Transmit Side Scaling for Windows
- environments and Scalable I/O for Linux environments
<b>Virtualization Features</b>
- Supports virtualization features such as VMDq,
- Next-generation VMDq (64 queues per port) and
- PC-SIG SR-IOV implementation
- IPv6 Offloading
- Advanced Packet Filtering
- VLAN support to allow creation of multiple VLAN segments
<b>Manageability Features</b>
- Preboot eXecution Environment (PXE) support
- Simple Network Management Protocol (SNMP) and Remote
- Network Monitoring (RMON) statistics counters
- iSCSI remote boot
<b>OS Support</b>
- Windows® 7, 2003, 2008, 2008 R2, Vista
- RedHat EL, SuSe SLES
- FreeBSD
- VMWare
<b>Cables Support</b>
- SFP+ direct attached twin axial cables, up to 7 meters
- LC-LC fiber-optic cables (optional SFP+
transceiver is required)
