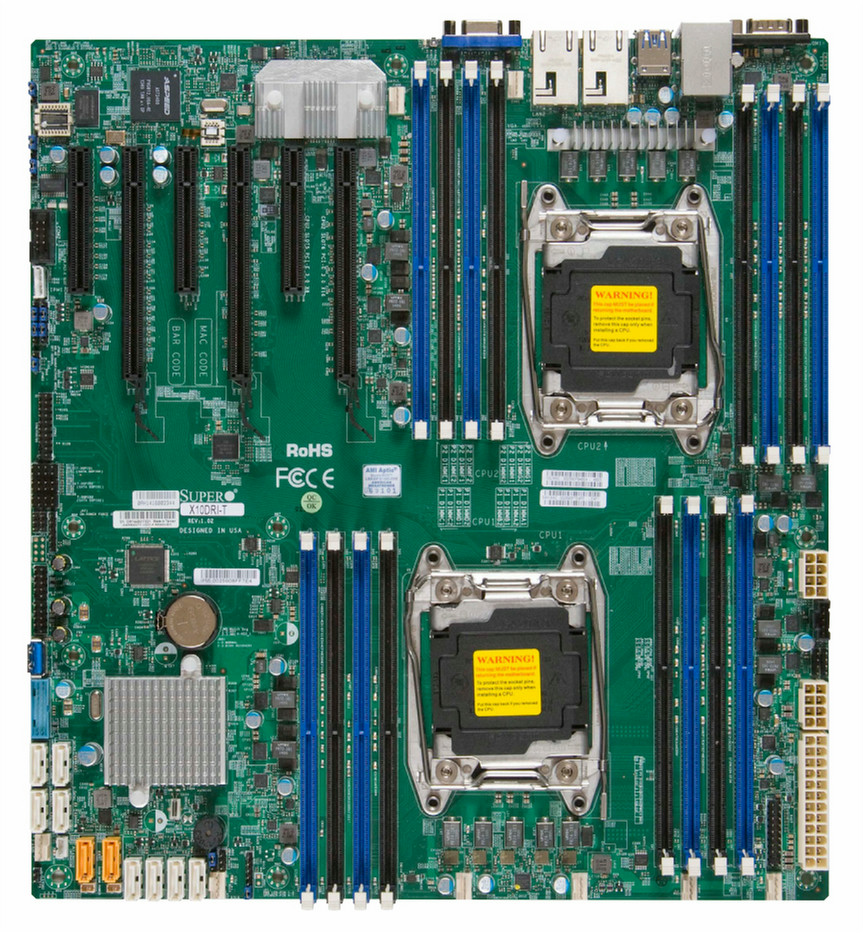

Supermicro X10DRi Intel C612 Socket R (LGA 2011) Extended ATX server/workstation motherboard

Supermicro X10DRi Intel C612 Socket R (LGA 2011) Extended ATX server/workstation motherboard

EAN: 5712505285732
MPN: MBD-X10DRI-O
发送方式:
交货来源:
德国
更新价格... 📣 询问价格 Не поставляется
运输成本:
От

凡购买和价格 (Advertising *)

顶部
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

技术特点

顶部

内存参数

可支持内存时钟速度 1600, 1866, 2133 MHz
DIMM插槽数量 16
错误更正代码 Y
支持的内存类型 DDR4-SDRAM
内存电压 1.2 V
支持RDIMM模块的容量 16GB, 32GB, 4GB, 8GB
最大RDIMM内存 512 GB
支持 LRDIMM 模块容量 64GB, 32GB
最大 LRDIMM 内存 1000 GB

设计

主板元件 Extended ATX
组件应用 Server

联网

网路唤醒功能 Y
局域网控制器 Intel I350
以太网接口类型 Gigabit Ethernet
无线局域网连接 N

处理器

发热量 145 W
可支持处理器数量 2
英特尔® 至强® 系列 E5-2600
支持QPI 9.6 GT/s
处理器生产厂商 Intel
可支持的处理器的核心数量 18

内置输入/输出系统

TPM(可信任安全平台模组)接口 Y
SATA III连接器数量 10
COM连接器数量 2
串行端口接头连接器 2

扩展槽

PCI Express X 8(Gen 3.x)插槽 2
PCI Express X16(Gen 3.x)插槽 3

基本輸出輸入系統/BIOS

基本输入输出系统类型 AMI
BIOS内存大小 128 MB
ACPI的版本 4.0

背板输出端口

IPMI LAN端口(RJ-45) Y
USB 3.0(第 1代3.1)Type-A 端口数量 5
VGA(D-SUB)端口数量 1

存储控制器

硬盘接口 Serial ATA III

另外

主板晶片 Intel C612
以太网连接器 Y
以太网路(RJ-45)连接接口数量 3
Dual socket R3, LGA 2011, Intel Xeon E5-2600 v3, Intel C612 chipset, Up to 1TB reg. ECC DDR4 2133MHz, 16x DIMM, Intel i350 Dual port GbE LAN, 5x USB 3.0, 6x USB 2.0, Retail Pack Introducing Supermicro's latest generation of dual processor motherboard technology based on Intel's E5-2600 v3 Haswell processor. Supermicro's X10 motherboards are specifically designed to meet the demanding needs of today's complex computational workloads. Feature rich and highly expandable, our X10 motherboards provide the latest advanced integrated and expandable storage and networking technologies. Features like lightning fast DDR4 memory, NVMe/SAS3/SATA3 storage interfaces, 1G/10GBASE-T, 10G SFP+, 40GbE, and Infiniband QDR/FDR. With its unprecedented set of features, each X10 motherboard is specifically tailored to provide optimal performance while helping to reduce deployment and operational costs over the lifespan of the product.
