联网
| 局域网控制器 |
Intel I210AT, Intel I217LM |
| 以太网接口类型 |
Fast Ethernet, Gigabit Ethernet |
| 无线局域网连接 |
N |
扩展槽
| PCI Express X16（Gen 3.x）插槽 |
3 |
| PCI Express x1（Gen 2.x）插槽 |
3 |
内置输入/输出系统
| SATA III连接器数量 |
8 |
| 机箱防盗接口 |
Y |
| USB 2.0接口 |
4 |
处理器
| 处理器生产厂商 |
Intel |
| 可支持处理器数量 |
1 |
| 英特尔® 至强® 系列 |
E3-1200 |
内存参数
| 可支持内存时钟速度 |
1600 MHz |
| 无错误检测和更正 |
Y |
| 错误更正代码 |
Y |
| 支持的DIMM大小 |
1GB, 2GB, 4GB, 8GB |
| DIMM插槽数量 |
4 |
| 最大内部存储 |
32 GB |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存电压 |
1.5, 1.35 V |
性能
| 可信平台模块（TPM）版本 |
1.2 |
| 可信任平台模组(全面生产管理) |
Y |
背板输出端口
| IEEE 1394/Firewire(火线)端口数量 |
1 |
| DVI-I接口数量 |
1 |
| COM接口数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
| VGA（D-SUB）端口数量 |
1 |
基本輸出輸入系統/BIOS
| ACPI的版本 |
5.0 |
| 基本输入输出系统类型 |
AMI |
| BIOS内存大小 |
128 MB |
另外
| 主板晶片 |
Intel C226 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |

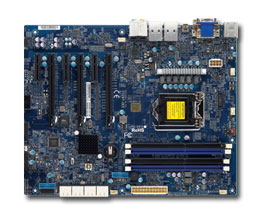

LGA 1150, Intel Xeon E3-1200, Intel C226, 32GB, DDR3, ECC/non-ECC, 1600MHz, 8x SATA3 (6Gbps), 6x SATA3, 3x PCI-E 3.0 x16, 3x PCI-E 2.0 x1, UEFI BIOS, Retail Pack
Supermicro UP Solutions based on Intel Xeon processors E3 Series
Supermicro leverages its deep expertise in server technology to bring customers the newest generation in UP server solutions with the X10 series of serverboards. These advanced technology building blocks offer the best server performance with the latest Intel® Xeon® E3-1200 v3 CPUs, up to 4 DIMMs operating at 1600MHz, USB 3.0, onboard SAS 2.0 or SATA 3.0 (6Gbps) HDDs, onboard IPMI, and advanced options such as quad Gigabit Ethernet LAN. Power efficiency is not sacrificed due to DDR3L (1.5v) support, LV CPU SKUs, digital platinum level high-efficiency power supplies, and application optimized cooling.
The best technologies require the best management tools and support. Supermicro customer services include 3-year limited warranty, 4-hour and 24-hour repair service options, Rack Solution and Integration Services, Global Logistics, and highest-availability Global SKUs. Advanced management tools such as onboard IPMI 2.0 remote management support and advanced power management tools make the Supermicro customer experience more efficient and cost-effective.
With best performance, leadership I/O, focus on energy efficiency, and continued advancements in customer support and services, Supermicro new generation server solutions are the optimal solution for SMB, Enterprise, and Public Sector Cloud Computing, Hadoop, Big Data, Data Centers, HPC, Storage, and General Server needs.
