性能
| 主板元件 |
Mini ITX |
| 可信平台模块（TPM）版本 |
1.2 |
| 主板芯片组系列 |
Intel |
| 可信任平台模组(全面生产管理) |
Y |
| PC健康监测 |
FAN, LED, Temperature, Voltage |
| 音频系统 |
HD |
内存参数
| 可支持内存时钟速度 |
1600 MHz |
| 无错误检测和更正 |
Y |
| 无缓冲内存 |
Y |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存电压 |
1.5 V |
| 内存插槽类型 |
SO-DIMM |
| 支持的内存模块容量 |
1GB, 2GB, 4GB, 8GB |
| 內存插槽数量 |
2 |
| 最大内部存储 |
16 GB |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
128 MB |
| 基本输入输出系统类型 |
UEFI |
| ACPI的版本 |
5.0 |
内置输入/输出系统
| 迷你SATA端口数量 |
1 |
| USB 2.0接口 |
2 |
| SATA III连接器数量 |
2 |
| SATA II连接器数量 |
2 |
扩展槽
| PCI Express X16（Gen 2.x）插槽 |
1 |
背板输出端口
| DVI-I接口数量 |
1 |
| DisplayPort 数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| HDMI端口数量 |
1 |
处理器
| 英特尔®酷睿™ i3/ i5 / i7 系列 |
i3-4xxx, i5-4xxx, i7-4xxx |
另外
| 主板晶片 |
Intel H81 |
| 图形适配器 |
Intel HD Graphics 4600 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |

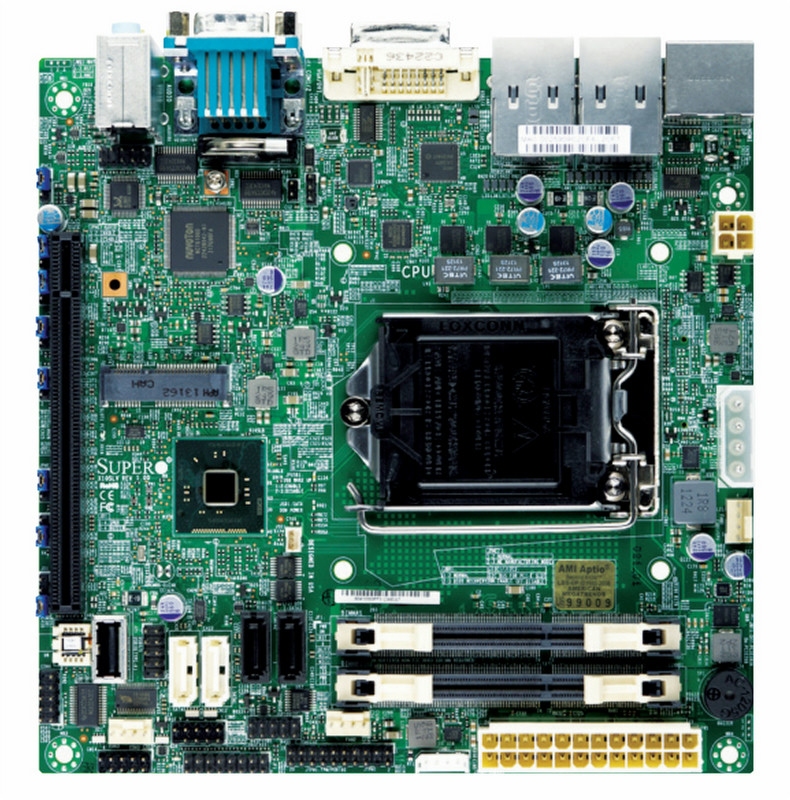

Single socket H3 (LGA 1150), Intel 4th gen. Core i7/i5/i3, Pentium, Celeron, Intel H81 Express Chipset, Dual Gigabit Ethernet LAN ports, HD Audio 7.1, Retail Pack
Major Benefits from Supermicro's in-house Design Superiority
Supermicro motherboard advantages:
- Technologically-advanced Motherboard Designs Since 1993
- Consistent highest-quality Design, Components, and Production Expertise
- Extensive Range of x86 Serverboards Available
- Competitive Price/Performance
- High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
- Standard Form Factors offer Feature - rich Support and application optimization
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.
In addition, Supermicro also offers high-performance Embedded motherboards with product life cycles of up to 7 years.
