其他功能
| 支持数据传输率 |
16.7, 25, 33, 48, 66, 100, 133, 150MB/s |
| Mac兼容性 |
N |
| 数据传输速度 |
150 Mbit/s |

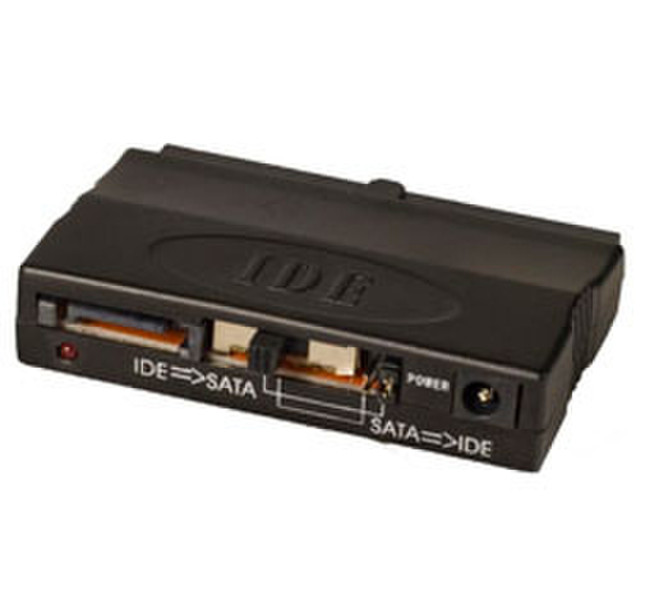

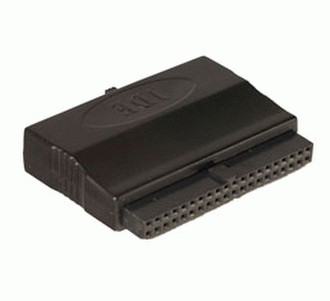

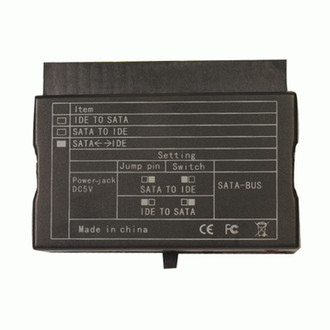

Bi-directional IDE SATA Adapter
This Syba Bi-Directional converter for Serial ATA and Parallel ATA does it all, SATA Hard Drive to IDE Converter or IDE Hard Drive to SATA Host Converter.
This adapter also acts as a two way converter for serial and parallel ATA translation. It includes the Serial ATA PHY, Link, Transport, and Parallel ATA (application layer) controller.This converter's Serial ATA physical, link, and transport layers are compliant to Serial ATA 1.0 and supports 1.5GHz data rate.
- Jmicro JM20330 Chipset
- Plug & Play and Hot-swapping capability
- 150MB/s transfer rate
- Automatic SATA 3.0/1.5 Gbps speed negotiation
- Serial-ATA 1.0 specification compliant
- Support Serial ATA hot-plug
- Support ATA Host Bridge
- Support ATA PIO and UDMA modes 0 to 4
- ATA / ATAPI Ultra DMA of transfer rate 16.7, 25, 33, 48, 66, 100, 133, and 150MB/s
- ATA / ATAPI LBA48 addressing mode associated with 2-byte sector count
- Support 3.5” IDE hard drives and 5.25” optical drives
- Ultra low power consumption
- Work for both AC and DC couple between the transmitter and the receiver
- Provide specified OOB signal detection and transmission
- Support Spread Spectrum Clocking to reduce EMI
- Support Partial/Slumber power management
- Provide adjustable TX signal amplitude and pre-emphasis level
- Master/Slave mode support
- Support Windows 98SE/ME/2000/XP/Vista Operating System
