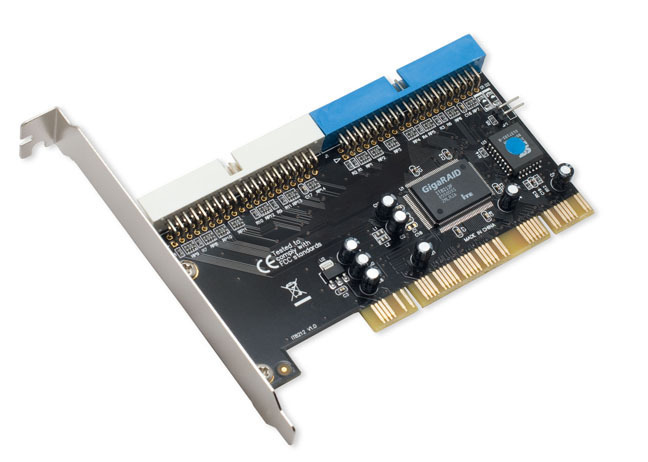

SYBA SY-PCI45004 peripheral controller

2x ATA/133 IDE PCI ITE8212 chipset, non-RAID - Compliant with UDMA 5 ATA/100 or UDMA 6 ATA/133 Specification
- Compliant with ATA/ATAPI-5 or ATA/ATAPI-6 Specification
- Supports maximum data transfer rate of 100MB/s or 133MB/s
- Compliant with PCI Specification Revision 2.1 & 2.2
- Compliant with PCI IDE Controller Revision 1.0
- Compliant with Programming interface for Bus Master IDE Controller Revision 1.0
- Two independent Ultra ATA channels with 128/256 bytes buffer per channel
- Connect up to four IDE/ATA devices (coexist with On-board IDE ports), ATA-2, IDE and ATAPI devices
- Supports Ultra and Multi-Word DMA timing modes
- Enhanced data integrity of transferred data with CRC (Cyclical Redundancy Check) protection and verification
- Built-in 80pin detect circuitry
