技术细节
| 类型 |
AV transmitter & receiver |
| 最大传输距离 |
100 m |
| HDCP |
Y |
| 可支持的电缆类型 |
Cat5e, Cat6a, Cat7, Cat6 |
端口 & 界面
| HDMI输入 |
1 |
| RJ-45输入端口 |
1 |
| RJ-45输出端口 |
1 |
| DC-IN插口 |
Y |
能量控制
| 电流 |
3 A |
| 支持以太网（PoE） |
Y |
| 外接电源转接器 |
Y |
| 工作电压 |
12 V |
重量和尺寸
| 接收器尺寸（宽 x 深 x 高） |
98.5 x 66.5 x 23 mm |
| 发射器重量 |
79 g |
| 发射器尺寸（宽x深x高） |
98.5 x 66.5 x 23 mm |
Amplifier HDMI, 110m, on Cat.5/6/7, HDBaseT IR 3D 4Kx2K, Black

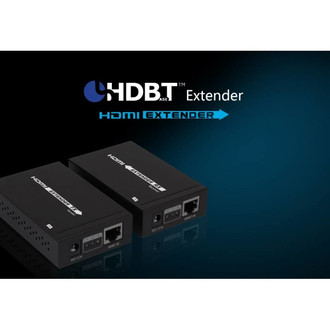

The extender IDATA EXT-E90 is powered by HDBaseT and allows you to extend the HDMI signal 4Kx2K on screens up to 100 meters with single cable Cat. 6A / 7.
<b>Characteristics</b>
- Supports extension technology HDBaseT
- Supports Full HD1080P @ 60Hz, 3D, 4Kx2K
- Extends 1080P signal up to 100 meters of cable Cat.6A
- Supports HDMI uncompressed
- Supports uncompressed audio such as LPCM
- Supports compressed audio such as Dolby Digital and DTS Digital
- Supports HDCP, CEC, 24 deep color
- It can be powered via the network cable
<b>Technical specifications</b>
- HDMI signal: 4Kx2K, HDCP, CEC support and 24-bit deep color- Resolution: 480i / 480P / 576i / 576P / 720P / 1080i / 1080P / 3D / 4Kx2K
- Audio: LPCM, DTS Digital, Dolby Digital
- Network cables: CAT5E, CAT6, CAT6A, CAT7
- Transmission distance:
- CAT5E / 6: 100m up to 1080P @ 60Hz 36bpp; 70m 1080p @ 60Hz 48bpp, 1080p @ 60Hz 3D, 4Kx2K 30Hz
- CAT6A / 7: 100m 1080p @ 60Hz 48bpp, 1080p @ 60Hz 3D, 4Kx2K 30Hz

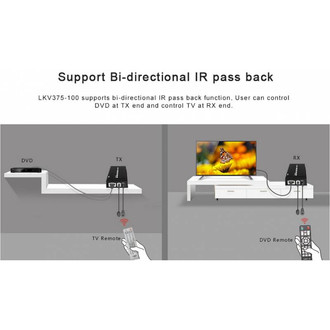

- Infrared sensor: supports 20 ~ 60 kHz frequency transmission bidirectional IR
- Receiver with PoE support
- Power supply: 1x DC12V / 3A
- Power consumption: 8W
- Housing: metal
- Black Colour

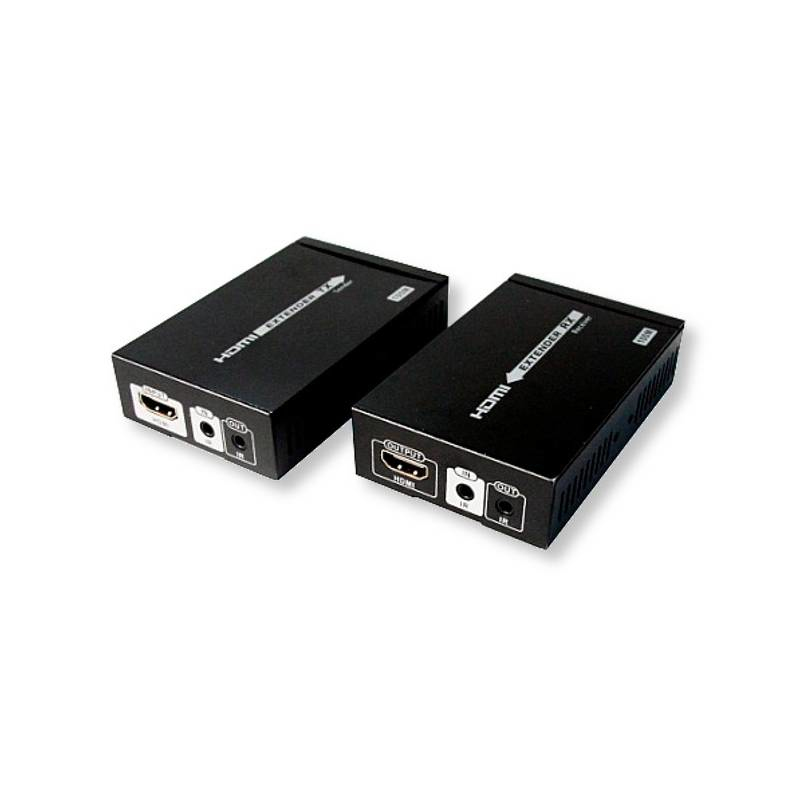

<b>Connections</b>
- Transmitter:
- Input: HDMI Female to connect the HDMI source
- Output: RJ-45 female HDBaseT
- IR input, for connecting the IR receiver with extension cable
- IR output, for connection with the extensor IR extension cable
- 12V DC power connector
- Receiver:
- Input: RJ-45 female HDBaseT
- Output: HDMI female, for connection of the HDMI display
- IR input, for connecting the IR receiver with extension cable
- IR output, for connection with the extensor IR extension cable
- 12V DC power connector
<b>Dimensions</b>
- Width: 98.5 mm
- Height: 23 mm
- Depth: 66.5 mm
- Transmitter weight: 79 g
- Handset weight: 107 g
<b>Certifications</b>
- EC
- RoHS
- WEEE
<b>Package Contents</b>
- 1x Transmitter HDBaseT
- 1x Repeater HDBaseT
- 1x Power supply DC12V / 3A
- Cables IR in and out
- 1x User Manual
