产品特点
类型 |
Freestanding rack |
钥匙锁 |
Y |
框架类型 |
Open |
滑轮配置 |
Y |
最大承重量(最大载重能力) |
500 kg |
包含面板 |
Y |

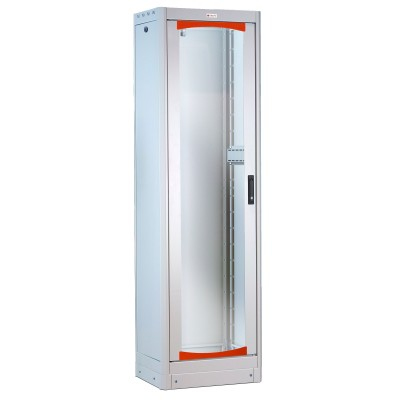

Rack cabinet 19" 600x400 27 Units Grey
Solid closet floor rack characterized by a solid and robust design with 19 "2 mm thick and innovative corner 3 mm thick. At the robustness of the structure it joins the innovative design and modern, that does not neglect the practicality installation . in fact, using a simple key, the cabinet can be assembled and disassembled easily, thus allowing to perform a quick installation. This speed of assembly is also guaranteed by the quick-release hinges on the front door and the locks "to a quarter turn "present on the panels. These cabinets are a compact solution to meet the need to install wiring in a small space: the XXS cabinets are designed precisely for applications in confined spaces or in case they need to contain small equipment. More key features such as reversible door, side and rear removable panels, the plinth with removable panels, the pair of numbered posts, the fund that at the discretion longer be kept closed or open to promote air circulation, make, together with the ' wide range of accessories offered, these cabinets can meet all installation requirements.
Features
- Panels and door easily removable to facilitate the installation of equipment
- Reversible front door with tempered glass to UNI EN 12150-1 regulations, with hinges and quick release handle with lock and key
- Side and rear removable blind panels with lock system ¼ turn
- Provision roof with holes for ventilation and provided with cable entry
- Designed to allow cable entry and with closed door that allows support for devices such as UPS, opened favors aeration
- Front racks numbered
- Blind socket set (h. 100 mm) with removable panels
- Static load capacity of 500 kg, 220 kg on wheels
- Degree of protection IP20 according to EN 60529
- Color: RAL7035 (Grey)
- External dimensions: (H x W x D), 1290 (1390 mm with base) x 600 x 400 mm
- Useful internal dimensions: (W x D) 486 x 375 mm
