技术细节
| 输出电流 |
6000 mA |
| 适用性 |
Universal |
| USB连接 |
Y |
| 过电压保护 |
Y |
| USB 输出电流 |
1 A |
能量控制
| 输入电压 |
100-240 V |
| 输出电压可调 |
Y |
| 接受频率 |
50/60 Hz |
| 输入电流 |
1.8 A |
| 输出电压说明 |
15-20V DC / 4.7 to 3.5: 15V / 4,7A; 16V / 4,4a; 18V / 3,9A; 18.5V / 3,8A; 19V / 3.7A; 19.5 / 3.6A; 20V / 3.5 |
| 输入电压自动调节 |
Y |
| 输出功率 |
70 W |
性能
| 可拆卸电源连接器 |
Y |
| 电源保护功能 |
Over voltage, Overload, Short circuit |
| 主要应用 |
Notebook |
| 电源电流类型 |
AC-to-DC |
| 电源类型 |
Universal |

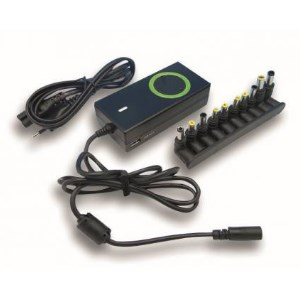

Universal Notebook Power Adapter, 70W, USB, European Plug
This universal adapter is designed for all laptops and mini-notebooks, but also for LCD and LED TV.
Output voltage
- 15-20V DC / 4.7 to 3.5: 15V / 4,7A; 16V / 4,4a; 18V / 3,9A; 18.5V / 3,8A; 19V / 3.7A; 19.5 / 3.6A; 20V / 3.5A
Features
- Laptop Power Supply
- Black Colour
- Includes 12 DC plugs parts
- Power: 70W
- With USB port for additional devices 1A for charging
- Automatically selects the required voltage
- Operating Temperature: 0-40 ° C
- Storage temperature: -20 - 40 ° C
Technical specifications
- Input voltage: 100-240 V AC / 1.8A max
- Output voltage: 15-19.5 V DC
- Output Current: 4600-6000 mA
- Input Connector: European plug
Compatibility
- Compatible with: HP, Dell, Acer, Compaq, Lenovo, Fujitsu, Toshiba, Asus, IBM, Samsung, Sony, Delta, Liteon ..
Protections
- Short circuit
- Overload
- Overvoltage
Dimensions
- Width: 55 mm
- Height: 123 mm
- Depth: 33 mm
Certifications
- EC
- FCC
- RoHS
- WEEE
Package Contents
- Universal power supply
- 12 interchangeable plug
- Power cord
- User manual
