性能
| 远程电文 |
1000 pages |
| 支持的视频格式 |
H.264, M2TS, MKV, MOV, MP4, MPEG1, MPEG2, MPEG4, MPG, TS, TS4, VC-1, ASF, AVI, VOB, WMV, XVID |
| 电传文讯功能 |
Y |
| 数字视频录像机（DVR） |
Y |
| 支持的视频格式 |
JPG |
| 音频格式支持 |
AAC, MP2, MP3, WMA |
显示器
| 对比度（动态） |
100000:1 |
| 响应时间 |
6 ms |
| HD 类型 |
Full HD |
| 显示器尺寸 |
40 " |
| 运动插补频率 |
200 Hz |
| 对比度 |
5000:1 |
| 视角，水平 |
178 ° |
| 显示器分辨率 |
1920 x 1080 pixels |
| 视角，垂直 |
178 ° |
| 显示器亮度 |
450 cd/m² |
| 3D兼容性 |
Y |
| 长宽比 |
16:9 |
智能电视
| 时空飞梭 |
Y |
| Smart TV 智能电视 |
Y |
| 网络电视 |
Y |
重量和尺寸
| 重量（含底座） |
18500 g |
| 宽度（含底座） |
972 mm |
| 高度 |
602 mm |
| 深度 |
74 mm |
| 重量 |
16000 g |
| 宽度 |
972 mm |
| 深度（含底座） |
200 mm |
| 高度（含底座） |
629 mm |
能量控制
| 功耗（一般操作） |
86 W |
| 功耗（节能） |
20 W |
| 功耗（待机） |
0.05 W |
| 全年能源消耗 |
126 kWh |
音频
| 音频解码技术 |
Dolby Digital AC3, Dolby Digital Plus |
| 内建的声音解码器 |
Dolby Digital |
| 超重低音功率有效值 |
12 W |
| 内置超低音音响 |
Y |
| RMS的额定功率 |
16 W |
| 内置扬声器 |
Y |
| 扬声器数量 |
2 |
管理功能
| 画中画 |
Y |
| 图片和图片 |
Y |
| 图片和文字 |
Y |
| 睡眠定时器 |
Y |
| 屏幕显示 （OSD）语言 |
FRE, GRE, HUN, ITA, POL, POR, RUS, SWE, TUR, CZE, DEU, DUT, ENG, ESP |
| 电子节目指南（EPG） |
Y |
| 酒店模式 |
Y |
| 开关定时器 |
Y |
| OSD语言数 |
14 |
| 屏幕显示 |
Y |
电视调谐器
| 可支持电视频段 |
CATV, UHF, VHF |
| 模拟信号系统 |
PAL BG, PAL DK, PAL G, PAL I, PAL L |
| 调谐器类型 |
Analog & Digital |
| 数字信号格式系统 |
DVB-C, DVB-T, DVB-S2, DVB-S |
端口 & 界面
| 音频输入（左、右声道） |
1 |
| Plus通用接口（CI +） |
Y |
| 耳机输出端口 |
1 |
| 数字音频同轴输出 |
1 |
| USB2.0端口的数量 |
2 |
| VGA（D-SUB）端口数量 |
1 |
| HDMI端口数量 |
3 |
| SCART接口数量 |
1 |
| 数字音频光学输出 |
1 |
内容包装
| 配有电池 |
Y |
| 包含电缆 |
AV |
| 用户手册 |
Y |
| 手持式遥控器 |
Y |
| 快速入门指南 |
Y |
| 保修卡 |
Y |
技术细节
| VGA（D-SUB）输入端口 |
1 |
| LED背光源 |
Y |
人体工程学
| VESA 安装支架 |
Y |
| VESA 安装系统兼容界面 |
200 x 200 mm |
包装数据
| 包装盒厚度 |
290 mm |
| 包装重量 |
23000 g |
| 包装盒宽度 |
1145 mm |
| 包装盒高度 |
840 mm |
另外
| 产品色彩 |
Black, Silver |
| 以太网连接器 |
Y |
| 开/关切换钮 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 运行温度范围（T - T） |
5 - 35 °C |
| 能源效率等级 |
B |

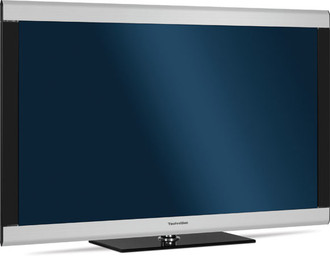

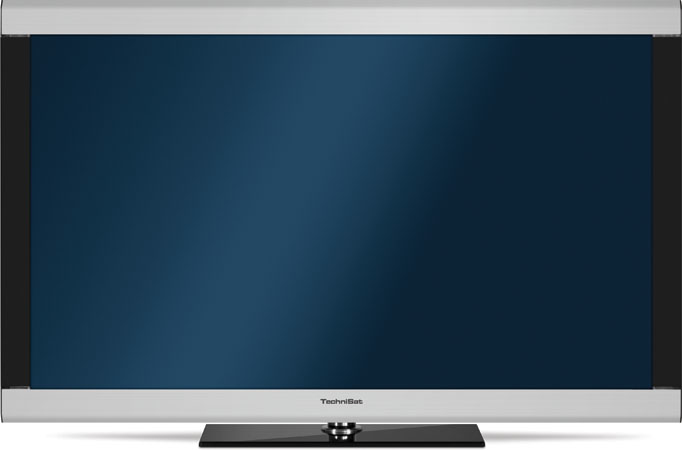

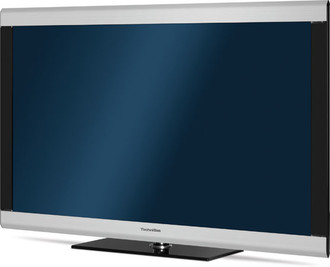

101.6 cm (40 ") LED, FHD, 450 cd/m², 6 ms, 100000:1, 1920 x 1080px
ISIO Internet-Technologie
Fitted with comprehensive IP functionalities, this unit permits access to interactive services, media libraries, free browsing on the Internet, calling-up "Video-on-demand" services and use of HbbTV applications. (HbbTV is a technology that allows access to channel-related Internet content while watching TV.)
HbbTV
Interactive additional services and additional information about the current channel via internet
Double-QuattroTuner
Device with integrated QuattroTuner for the reception of digital TV-and radio channels via DVB-S/S2, DVB-C, DVB-T and ieraktive services via internet in HDTV- without additional devices. With the Quattro-Tuner Twin the device is enables e.g.to record one channel while watching another.
"SiehFern INFO" (SFI)
This free electronic programme information service (ePID) allows TechniSat to offer a free current and comprehensive overview of a large number of channels. The programme preview extends up to seven days, can be adapted to suit individual requirements and is available at any time. The SiehFern INFO can also be used easily to activate each timer - requiring just a push of a button on the remote control.
ISIPRO
The free TechniSat channel list manager does away with tedious manual channel scanning. When channels change frequency or switch on/off, this service provides an automatic way of updating the list of channels available. This process runs if you have agreed to updating. Customised lists are retained and amended where necessary.
TechniMatic
This free updating service from TechniSat keeps the software on your device up to date. As soon as enhancements or improvements to the operating software are available, the set carries out an automatic software update at the appropriate time (adjustable in the menu on the TV). This ensures a high level of future-security and a wider and improved range of functions.
AutoInstall
When using the TV for the first time you must create a few important settings (specifically adaptation to local conditions). Clear instructions from the installation wizard provided by TechniSat guide you through easy-to-understand dialogues, enabling you to carry out the required configuration easily and rapidly. Your TV will therefore be ready for use in a short time.
TechniFamily
TechniFamily can be used to set up password-protected user profiles. Customised access options and restrictions can be defined for each profile, e.g. for selected channels, daily television viewing times and a maximum duration of use. In this way parents can adjust viewing behaviour as appropriate for the child.
MyTechniSat-App
It has never been easier to use your receiver for TV, remote programming or multimedia. With the MyTechniSat smartphone app, compatible devices can be controlled directly via a smartphone touchscreen; programme data and timers on the device can be viewed remotely via the internet and managed via a convenient touchscreen interface. MyTechniSat also offers you smart multimedia functions.
HTML5
HTML5-based video-on-demand services such as YouTube can be used on ISIO devices thanks to integrated HTML5 support. As HTML5 video is the standard for integrating video on websites, there will be many additional HTML5 offerings available on ISIO receivers in the future.
eLED-Panel
Use of the most up-to-date eLED technology means that the TV has an extremely flat screen with brilliant, razor-sharp pictures.
Full HD
Full HD means that an HDTV is able to show the highest HD resolution, (currently) 1920 x 1080 pixels. This corresponds to a picture containing over 2 million pixels. The high quality screens used by TechniSat display this resolution perfectly, so that, with this resolution capability, an exceptionally detailed and clear picture is achieved with spatial definition.
100% pixel error free
To achieve the best picture results, TechniSat only uses selected screens - “Best Screens” - in manufacturing its LCD digital TVs. These are guaranteed not to display any pixel errors.
DVRready
Easily record your favourite films or music on an external storage medium. Use this option to archive data without loss or to play it back using the Timeshift function. In doing so, we recommend using the TechniSat Streamstore24 USB drive. You should check the compatibility of USB media from third-party manufacturers individually with your dealer to be sure of full functionality.
Timeshift
This very handy and popular type of recording enables you to start playing back while you are still recording. Hence recording and playback take place simultaneously. Recordings being played back can be stopped at any time and resumed again later. It is also possible to repeat favourite scenes and skip over unwanted sections. You can now set the start time and progress of a programme yourself.
Perfect Recording
Detection of broadcast time postponement in DVR mode
2 x Common Interface (CI+)
This TV has two Common Interfaces (CI+). These are (common) interfaces used in combination with a CI+ module and corresponding SmartCard, to enable access to encrypted programming such as Pay TV or Pay Radio.
Pay TV ready
This TV also enables you to receive encrypted channel content requiring payment (Pay TV). To receive Pay TV, you need a subscription to the relevant Pay TV provider.
HD-XTRA
Thanks to HD-XTRA this device is perfectly suited for the widest possible range of HDTV channels. Youcan not onlyreceive all free-to-air HDTV channels, but thanks to the integrated CI+ interfaceyou can as well receive HD channels of all kinds of available Pay TV offers, like e.g. Sky, HD+ and others.
Universal Plug And Play (UPnP)
This TV can be easily integrated into a home network via the integrated Ethernet interface (with optional additional WLAN adapter), enabling various multi-media devices such as a PC, TV, hi-fi, digital cameras and much more to be interconnected by UPnP/DLNA.
Network interface
A network interface can be used to connect the device to the home network via, for example, a DSL router.
PIP function
The Picture in Picture (PIP) function enables the TV picture for one channel to be minimised and shown at the edge of the screen while another is watched on the main TV screen.
HDMI 3x
Three high performance interfaces are provided especially for extremely fast digital transmission of high-resolution pictures and sophisticated sound without loss. Even complex picture content and fast-moving sequences are displayed in first-class quality. Besides their high performance capability, HDMI connections are distinguished by bidirectional data transmission.
2 x USB
The USB HighSpeed interfaces enable simple connection and fast digital data transmission of up to 480 Mbit/s to various devices.
VGA
This TV has a VGA port.
Playing MP3s
This TV has an integrated playback function for playing music and audio books in MP3 format.
JPEG
You can, for example, play back your holiday photos in JPG format directly on your TV via USB using an attached data carrier.
Peak contrast
High contrast levels for precision detailed pictures
Optimum 16:9
The Optimum 16:9 picture setting guarantees both problem-free display of 16:9 broadcasts and optimised display of 4:3 broadcasts. In selecting this picture format, 4:3 picture signals are optimised so that they are displayed full-screen and free of distortion.
Editing function
Recorded programmes can be edited later via handy cutting and editing tools (e.g. to remove advertising slots).
EPG
Electronic programme information service
Free TV
Suitable for reception via digital antenna TV (DVB-T).
Programme location mixing
For example, combination of analogue and digital cable channels in a channel list.
HiTextLevel 2.5
High resolution Teletext
TechniRouter-ready
This receiver is compatible with all TechniRouter products. It supports SCR technology with the extended DiSEqC protocol as per European standard EN 50494. SCR (Satellite Channel Routing) is a technology that is used to transmit multiple satellite channels to a specified receiver at a unique frequency in a single cable system.
Freesat Digital
A wide range of TV and radio broadcaster channels can be received via satellite as this is possible via cable and antenna. Hundreds of international TV and radio channels can be received for free via the Astra 19.2° East satellite position alone.
