显示器
| 显示器尺寸 |
47 " |
| 响应时间 |
8 ms |
| LED背光类型 |
Edge-LED |
| HD 类型 |
Full HD |
| 对比度 |
1200:1 |
| 视角，水平 |
178 ° |
| 视角，垂直 |
178 ° |
| 显示器亮度 |
350 cd/m² |
| 3D兼容性 |
Y |
| 长宽比 |
16:9 |
| 显示器分辨率 |
1920 x 1080 pixels |
性能
| 电传文讯功能 |
Y |
| 支持的视频格式 |
MPEG2, MPEG4, MPG, TS, VC-1, WMV, ASF, AVI, H.264, M2TS, MKV, MOV, MP4 |
| 远程电文 |
1000 pages |
| 支持的视频格式 |
JPG |
| 音频格式支持 |
AAC, MP2, MP3, WMA |
内容包装
| 用户手册 |
Y |
| 手持式遥控器 |
Y |
| 快速入门指南 |
Y |
| 保修卡 |
Y |
| 3D眼镜包括 |
Y |
| 3D眼镜数量 |
2 |
| 台式电脑支架 |
Y |
| 配有电池 |
Y |
端口 & 界面
| DVI端口 |
N |
| 耳机输出端口 |
1 |
| HDMI端口数量 |
3 |
| Plus通用接口（CI +） |
Y |
| 数字音频同轴输出 |
1 |
| USB2.0端口的数量 |
2 |
| SCART接口数量 |
1 |
| 数字音频光学输出 |
1 |
重量和尺寸
| 深度 |
665 mm |
| 宽度（含底座） |
1075 mm |
| 重量 |
16000 g |
| 宽度 |
1075 mm |
| 高度 |
640 mm |
| 深度（含底座） |
255 mm |
| 高度（含底座） |
685 mm |
| 重量（含底座） |
17500 g |
音频
| RMS的额定功率 |
20 W |
| 内置扬声器 |
Y |
| 扬声器数量 |
2 |
能量控制
| 功耗（待机） |
0.33 W |
| 全年能源消耗 |
90 kWh |
| 功耗（一般操作） |
65 W |
管理功能
| 睡眠定时器 |
Y |
| 屏幕显示 |
Y |
| 画中画 |
Y |
| 图片和图片 |
Y |
| 图片和文字 |
Y |
| OSD语言数 |
14 |
包装数据
| 包装盒厚度 |
185 mm |
| 包装重量 |
23200 g |
| 包装盒宽度 |
1170 mm |
| 包装盒高度 |
768 mm |
电视调谐器
| 可支持电视频段 |
CATV, UHF, VHF |
| 数字信号格式系统 |
DVB-T, DVB-S2, DVB-S, DVB-C |
人体工程学
| VESA 安装支架 |
Y |
| VESA 安装系统兼容界面 |
400 x 400 mm |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 运行温度范围（T - T） |
5 - 35 °C |
| 产品色彩 |
Silver, White |
| 显示器对角线（公制） |
120 cm |
| 以太网连接器 |
Y |
| 能源效率等级 |
A+ |

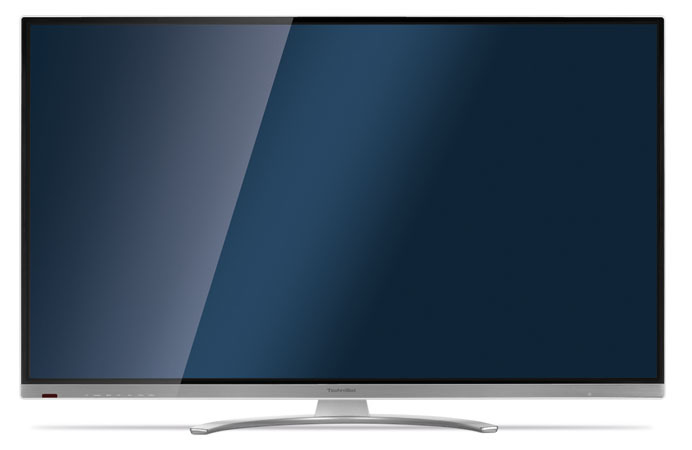

TechniPlus ISIO 47, 119.38 cm (47 ") , 3D, 1920 x 1080, 1200:1, 350cd/m2, 8ms, 178/178, 2x 10W, DVB-C/T/S/S2, HDMI, USB 2.0, SCART, Fast Ethernet, 65W
The TechniPlus ISIO is an internet-enabled smart TV with an integrated QuattroTuner Twin. It features an ultra slim housing, practical close operation and an elegant aluminium base in ascetic design, thus perfectly combining quality and elegance. Enjoy first class images in HD via digital satellite, digital cable and DVB-T without need of an extra receiver on a well-designed LED screen diagonal of 32/42/47/55 inch (81/107/119/140 cm). Via the innovative TechniSat ISIO technology, you can watch movies at the touch of a button, enjoy all episodes of your favourite TV series within one day, or get informed about the latest news whenever you like in your living room. The TechniPlus ISIO is DVRready and thanks to its integrated QuattroTuner Twin it can record up to two HDTV programmes via USB on an external storage medium without loss. Well known TechniSat features such as Autoinstall or MyTechniSat-App guarantee a most simple operation and maximal comfort at any moment.
Full-Internet
Fitted with comprehensive IP functionalities, this unit permits access to interactive services, media libraries, free browsing on the Internet, calling-up "Video-on-demand" services and use of HbbTV applications. (HbbTV is a technology that allows access to channel-related Internet content while watching TV.)
HbbTV
Interactive additional services and additional information about the current channel via internet
"SiehFern INFO" (SFI)
This free electronic programme information service (ePID) allows TechniSat to offer a free current and comprehensive overview of a large number of channels. The programme preview extends up to seven days, can be adapted to suit individual requirements and is available at any time. The SiehFern INFO can also be used easily to activate each timer - requiring just a push of a button on the remote control.
ISIPRO
The free TechniSat channel list manager does away with tedious manual channel scanning. When channels change frequency or switch on/off, this service provides an automatic way of updating the list of channels available. This process runs if you have agreed to updating. Customised lists are retained and amended where necessary.
TechniMatic
This free updating service from TechniSat keeps the software on your device up to date. As soon as enhancements or improvements to the operating software are available, the set carries out an automatic software update at the appropriate time (adjustable in the menu on the TV). This ensures a high level of future-security and a wider and improved range of functions.
AutoInstall
When using the TV for the first time you must create a few important settings (specifically adaptation to local conditions). Clear instructions from the installation wizard provided by TechniSat guide you through easy-to-understand dialogues, enabling you to carry out the required configuration easily and rapidly. Your TV will therefore be ready for use in a short time.
TechniFamily
TechniFamily can be used to set up password-protected user profiles. Customised access options and restrictions can be defined for each profile, e.g. for selected channels, daily television viewing times and a maximum duration of use. In this way parents can adjust viewing behaviour as appropriate for the child.
MyTechniSat-App
It has never been easier to use your receiver for TV, remote programming or multimedia. With the MyTechniSat smartphone app, compatible devices can be controlled directly via a smartphone touchscreen; programme data and timers on the device can be viewed remotely via the internet and managed via a convenient touchscreen interface. MyTechniSat also offers you smart multimedia functions.
eLED-Panel
Use of the most up-to-date eLED technology means that the TV has an extremely flat screen with brilliant, razor-sharp pictures.
DVRready
Easily record your favourite films or music on an external storage medium. Use this option to archive data without loss or to play it back using the Timeshift function. In doing so, we recommend using the TechniSat Streamstore24 USB drive. You should check the compatibility of USB media from third-party manufacturers individually with your dealer to be sure of full functionality.
Timeshift
This very handy and popular type of recording enables you to start playing back while you are still recording. Hence recording and playback take place simultaneously. Recordings being played back can be stopped at any time and resumed again later. It is also possible to repeat favourite scenes and skip over unwanted sections. You can now set the start time and progress of a programme yourself.
Perfect Recording
Detection of broadcast time postponement in DVR mode
2 x Common Interface (CI+)
This TV has two Common Interfaces (CI+). These are (common) interfaces used in combination with a CI+ module and corresponding SmartCard, to enable access to encrypted programming such as Pay TV or Pay Radio.
Pay TV ready
This TV also enables you to receive encrypted channel content requiring payment (Pay TV). To receive Pay TV, you need a subscription to the relevant Pay TV provider.
Universal Plug And Play (UPnP)
This TV can be easily integrated into a home network via the integrated Ethernet interface (with optional additional WLAN adapter), enabling various multi-media devices such as a PC, TV, hi-fi, digital cameras and much more to be interconnected by UPnP/DLNA.
Network interface
A network interface can be used to connect the device to the home network via, for example, a DSL router.
