端口 & 界面
| 遥控器（IR）输出 |
1 |
| PC机(D型接口) |
Y |
| PC音频 |
Y |
| DVI端口 |
N |
| Plus通用接口（CI +） |
Y |
| 复合视频 |
1 |
| VGA（D-SUB）端口数量 |
1 |
| RF端口数量 |
2 |
| HDMI端口数量 |
2 |
| 耳机输出端口 |
1 |
| USB2.0端口的数量 |
2 |
| 音频输入（左、右声道） |
1 |
| 分量视频(YPbPr/YCbCr)输入 |
1 |
| SCART接口数量 |
1 |
电视调谐器
| 自动频道搜索 |
Y |
| 数字信号格式系统 |
DVB-T, DVB-S2 |
显示器
| 显示器尺寸 |
19 " |
| 响应时间 |
5 ms |
| 长宽比 |
16:9 |
| 屏幕形状 |
Flat screen |
| 对比度 |
1000:1 |
| 视角，水平 |
170 ° |
| 视角，垂直 |
160 ° |
| 显示器亮度 |
250 cd/m² |
| 显示器分辨率 |
1366 x 768 pixels |
| 3D兼容性 |
N |
性能
| 电传文讯功能 |
Y |
| 扩展PVR |
Y |
| 光盘类型支持 |
DVD |
| 支持的视频格式 |
MPEG4 |
| 双亲控制 |
Y |
智能电视
| 时空飞梭 |
Y |
| Smart TV 智能电视 |
N |
| 网络电视 |
N |
重量和尺寸
| 高度 |
291 mm |
| 深度（含底座） |
175 mm |
| 高度（含底座） |
335 mm |
| 重量（含底座） |
3600 g |
| 深度 |
53 mm |
| 宽度（含底座） |
460 mm |
| 宽度 |
460 mm |
音频
| 内置扬声器 |
Y |
| RMS的额定功率 |
6 W |
| 扬声器数量 |
2 |
另外
| 能源效率等级 |
Unspecified |
| 产品色彩 |
Black |
| 显示器对角线（公制） |
41 cm |
| 以太网连接器 |
N |

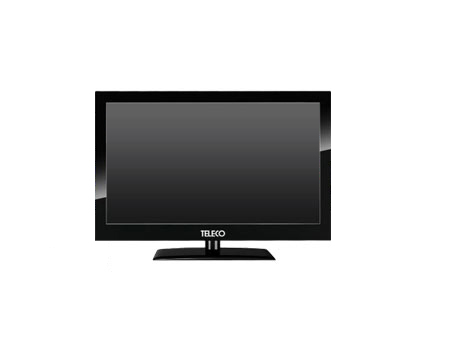

48.26 cm (19 ") , 1366 x 768, 5ms, DVB-T/S2, CI+, DVD, 2x 3W, HDMI, USB 2.0, 230V AC
All Terrestrial and Satellite TV programs via a single TV set with no need for external Decoders
Twin HD Board
- 1 for DVB Satellite - S2
- 1 for DVB-T MPEG 4 Terrestrial
- Twin CI+ port for HD and SD CAM Modules for both Satellite and Terrestrial encrypted programs
- Twin USB 2.0 port for both Satellite and broadcast Recording and Playing ( PVR )
- 4000 SD and HD Satellite TV and Radio Channels
- 2000 SD and HD Terrestrial TV and Radio Channels
- All the models are equipped with a Multifunction IR (infrared) sensor for the user to control both the TV and the automatic Flat Sat Elegance S and Flat Sat Komfort S Satellite Antenna by using a single remote control
- Time-Shift function in all the models, enabling to temporarily stop a program and then to resume watching it later on, starting from the exact point of interruption. This is possible by using the USB ports provided on the TV to record and replay programs by plugging a suitable flash drive into the USB port.
- Anti-reflection screens for quality viewing also in high-brightness environments
- Wide vertical and horizontal viewing angle
