技术细节
天线电缆长度 |
50 m |
放大(UHF) |
26 dB |
放大(VHF) |
9 dB |
增益 |
26 dB |
Omni-directional Antennas for Digital Terrestrial Signals
<b>The Wing antenna series has been designed to receive all signals.</b>
- Special care has been devoted to designing a highly aerodynamic shape: these antennas can be installed on the fastest campers.
- Each antenna has a special, ergonomic foot to allow the antenna to be positioned in any direction and facilitate installation on even the most streamlined roofs of the latest-generations campers and caravans.
- Rotation on 3 axes for perfect alignment to the roof.
- Compatible with LtE rejection Filters to avoid any possible interference caused by the new 4G Smartphones.

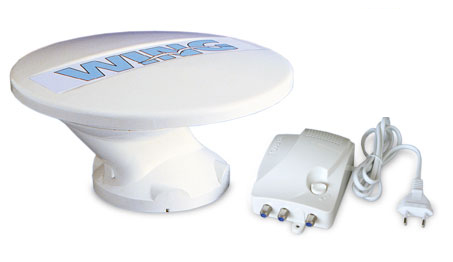

MINI-antenna (diameter: 31 cm only) specially designed to receive UHF channels.
However, a special circuit configuration and a highgain amplifier make it possible to receive VHF B3 programs, too.
<b>TECHNICAL DATA</b>
- Power supply: 12 / 24 Volt - 230 Volt
- Diameter: 31 cm
- Height: 16,5 cm
- Weight: 1 Kg
<b>Gain with Amplifier</b>
- CH 2 - 4 0 dB
- CH 5 - 12 9 dB
- CH 21 - 69 26 dB
<b>PACKAGE CONTENTS</b>
- 1 Antenna, complete with 5 m coax cable and 3 F connectors
- 1 Adjustable gain amplifier, with 2 outlets for 2 TV sets, powered off 12, 24 and 230 Volts
