移动网络
| 支持 4G 频段 |
800, 900, 1800, 2100, 2600 MHz |
| 支持的UMTS频段 |
900, 2100 MHz |
| 3G标准 |
UMTS |
| 2G标准 |
EDGE, GPRS, GSM |
| 3G |
Y |
| GSM频段的支持 |
850, 900, 1800, 1900 MHz |
| 4G |
Y |
| 4G标准 |
LTE |
无线局域网的特点
| Wi-Fi 频段 |
Single-band (2.4 GHz) |
| Wi-Fi标准 |
IEEE 802.11n |
| WLAN的数据传输率（最大值） |
150 Mbit/s |
| 无线局域网类型 |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
设计
| 液晶显示器指示灯 |
Activity, Power, WLAN |
安全
| 系统事件日志 |
Y |
| 防火墙 |
Y |
| 过滤 |
Y |
| MAC（媒体存储控制）地址过滤 |
Y |
| IP地址过滤 |
Y |
WAN 广域网连接
| 广域以太网 |
N |
| 3G/4G USB 调制解调器的兼容性 |
N |
| DSL WAN |
N |
| SIM卡插槽 |
Y |
天线
| 天线类型 |
Internal & external |
| 天线增益水平（最大值） |
20 dBi |
| 天线接口类型 |
Fakra |
| 天线数量 |
3 |
LTE/UMTS/GSM/GPRS/EDGE, 2.4 GHz, IEEE 802.11b/g/n, WEP, WPA, WPA2, 79 x 17 x 131 mm, 106 g

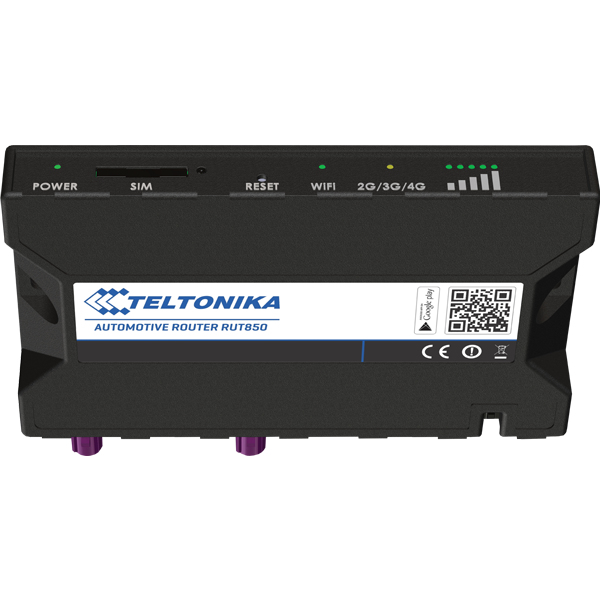

RUT850 is a compact and slim design LTE wireless router. It supports latest IEEE802.11n and IEEE802.11b/g WLAN standards and provides wireless transmitting and receiving rate up to 150 Mbps. LTE – up to 150 Mbps DL and 50 Mbps UL.
LTE support
Whether it is a long family trip, a camping spot or a need to access a back-end office – RUT850 has you covered. This sleek automotive router supports high speed LTE CAT4, which provides speeds of up to 150Mbps for your leisure or business demands.
Wireless network
With support of latest IEEE802.11n and IEEE802.11b/g WLAN standards you can be sure, that full LTE CAT4 potential can be realized: no bottlenecks from LTE to WiFi. Connect multiple devices, watch movies, video streams, or connect to remote surveillance equipment with ease.
Power supply
RUT850 can be used either in light vehicles or busses, trucks and other heavy transport, which utilizes 24V battery. This is achieved by wide input voltage range and voltage surge protection – no need for additional surge protection equipment. Power supply socket connector has an Ignition digital input, which controls router’s sleep mode status.
Android app
Set up your internet connectivity and be ready to go in minutes with just a few clicks from your smartphone. Manage and monitor router’s performance without physically connecting to the device.
RMS support
Manage your routers fleet remotely. With full support of centralized Teltonika Remote Management System you will be able to access, control and monitor all of your routers within a single platform. This will help you make better decisions for future installments and best-use practices.
