协议
| 动态主机配置协议服务器 |
Y |
| 动态主机配置协议客户 |
Y |
| DMZ支持 |
Y |
管理功能
| 网上管理 |
Y |
| 重启按钮 |
Y |
| 支持服务质量（QoS） |
Y |
其他功能
| 输入电流 |
0.3 A |
| 频段 |
2.4 GHz |
| 机架安装 |
N |
| 带宽（第一） |
2.4 GHz |
| 频率范围 |
2.4 - 5 GHz |
| xDSL connection |
N |
| Mobile network connection |
N |
安全
| MAC（媒体存储控制）地址过滤 |
Y |
| 网页(URL)过滤 |
Y |
| 系统事件日志 |
Y |
| 支持虚拟专用网 |
PPTP/L2TP |
天线
| 天线增益水平（最大值） |
5 dBi |
| 天线数量 |
2 |
| 天线类型 |
External |
无线局域网的特点
| Wi-Fi标准 |
IEEE 802.11n |
| 无线局域网类型 |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| WLAN的数据传输率（最大值） |
300 Mbit/s |
以太网LAN特性
| 以太网LAN接口类型 |
Fast Ethernet |
| 以太网的数据传输率 |
10, 100 Mbit/s |
另外
| 包括 AC 适配器 |
Y |
| 过滤 |
Client/URL/MAC |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |

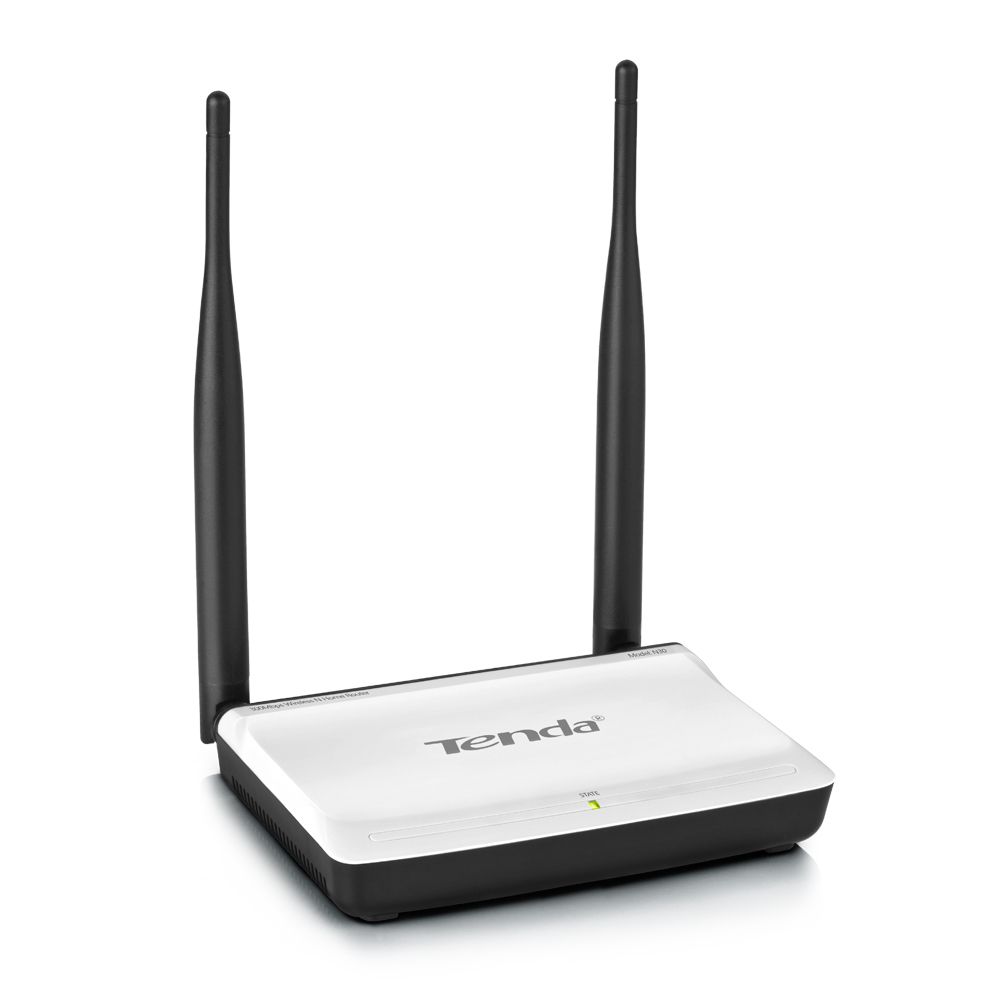

Wireless N300 Home Router, 1 x 10/100M LAN
The Tenda N30 delivers high performance and end-to-end wireless connectivity based on the latest wireless N technology which provides better wireless coverage and faster speeds than Wireless G. Sharing and streaming files has never been so easier with N30, because the WMM feature, QoS over wireless transmission, allows users to choose which applications to be prioritized, and the N30 uses MIMO(Multiple in Multiple out) technology to leverage the power of multiple antennas and offer improved range and speed over 150Mbps router. At last, a quick and intuitive installation process makes it well suited for your home networking needs. The N30 is an affordable solution for those who want to upgrade their network to Wireless speeds of up to 300Mbps throughout large home and office.
The N30 features multi-mode functionality you can utilize as a wireless router to create an 11n Wi-Fi network or easily use as an access point to add Wi-Fi to an existing wired network to provide a wireless connection anywhere desired. It also comes equipped with a built-in firewall that can protect every machine on a local network.
Complies with the IEEE 802.11n wireless standard. Create home or office wireless networks with up to 8x the speed and 6x the range of conventional 802.11g networks. Enjoy bandwidth intensive HD movie and music streaming, VoIP calls, online gaming and more, smoothly and lag-free without the worry of data loss over large areas.
It also supports priority of service where applications using a lot of bandwidth that are sensitive to interruptions such as voice and video are given priority in order to assure quality. By automatically prioritizing different types of network traffic, the N30 can enhance users' experiences for audio, video and voice applications over wireless networks.
You can share a high-speed Internet connection, files, media, and more - instantly!N30 provides a true plug and play solution to create a wireless network in just three steps via Web browser or setup wizard CD.
