数据传输
| MAC 地址表 |
4000 entries |
| 存储转发 |
Y |
| 交换容量 |
10 Gbit/s |
| 巨型帧 (Jumbo frames) |
15000 |
| 封包转发率 (1 Gbps) |
1488000 pps |
| 封包转发率（10 Mbps） |
14880 pps |
| 封包转发率（100 Mbps） |
148800 pps |
联网
| 自动 MDI / MDI - X 检测功能 |
Y |
| 支持 MAC 地址自动学习（auto-learning）功能 |
Y |
| 支持 MAC 地址自动年龄更新（auto-aging）功能 |
Y |
| 网络标准 |
IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 可支持的电缆类型 |
Cat3, Cat5, Cat5e |
| 全双工传输 |
Y |
能量控制
| 功耗（一般操作） |
2.5 W |
| 输出电压 |
5 V |
| 交流电（AC）输入电压 |
100-240 V |
| 电源 |
Y |
| 交流电（AC）输入频率 |
50/60 Hz |
| 输出电流 |
0.6 A |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
5 |
| DC-IN插口 |
Y |
| 以太网铜缆技术 |
100BASE-TX, 1000BASE-T, 10BASE-T |
| 千兆以太网(铜)端口数量 |
5 |
| 基本交换 RJ-45 以太网端口类型 |
Gigabit Ethernet (10/100/1000) |
| 控制台端口 |
RJ-45 |
环境条件
| 运行湿度范围(H-H) |
10 - 90% |
| 储存温度范围 (T-T) |
-40 - 70 °C |
| 储存相对湿度范围（H - H） |
5 - 90% |
重量和尺寸
| 深度 |
66 mm |
| 宽度 |
96 mm |
| 高度 |
23 mm |
设计
| 外壳设计 |
Freestanding |
| 液晶显示器指示灯 |
Activity, Link, Power |
| 认证 |
CE, FCC, RoHS |
| 机架安装 |
N |
另外
| 产品色彩 |
Black |
| 包括 AC 适配器 |
Y |
| 运行温度范围（T - T） |
0 - 40 °C |
5 x 10/100/1000 Mbps, auto MDI/MDIX, IEEE 802.3/u/x/ab, CDMA/CD
Uninterrupted Gaming & HD Video Streaming

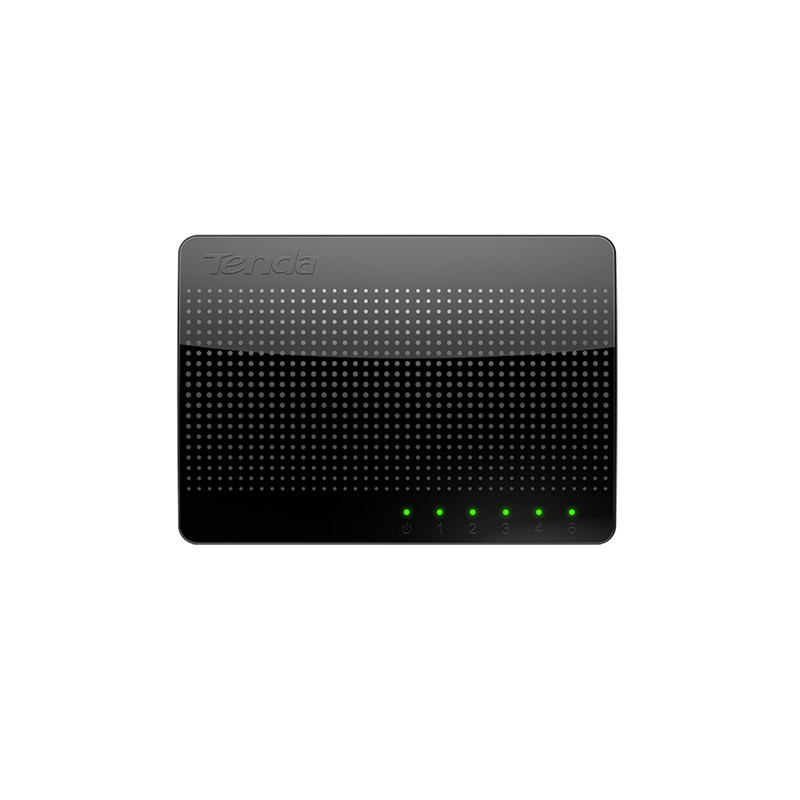

5-Port Gigabit Desktop Switch SG105.
What it does
SG105 is a 5-Port Gigabit Desktop SOHO switch. It provides 5 10/100/1000Mbps auto-negotiation ports, which you can use to establish a LAN network, or extend the uplink network. Compared with a 100M switch, it enhances transmission speed up to 10 times, eliminating the bottleneck of cascading bandwidth. It supports desktop installation and wall-mounting. Without configuration, it can be played once plugged.
With the stable connectivity and easy-to-use features, it is perfectly fit for the networking of school dormitories, small offices, home offices and Video Surveillance.
Main Features
- 5* 10/100/1000Mbps auto-negotiation ports;
- Auto MDI/MDIX simplifies networking and maintenance;
- Full wire speed forwarding ensures a smooth network experience;
- Flow control for full duplex and backpressure for half duplex avoids frame dropping as port blocked;
- Adopts store-and-forward mechanism and provides 2K MAC address table;
- 15K Jumbo frame improves the forwarding speed of large data;
- Adopts green and environmental ABS material, improving heat resistance and heat dissipation;
- Allows IP camera accessing and provides a running and clear image;
- Desktop and wall mounting simplify installation.
Gigabit speed, video transmission in seconds
Gigabit speed: In full duplex mode, the transmission speed can be 2000Mbps, 10x speed of fast ethernet , and data packets are forwarded at full wire speed.
Stay online for 7*24 hours and no packet loss
With store and forwarding mode, MAC address auto learning and auto aging , SG105 can transfer data without loss to ensure stable and blazing fast Wired network performance.
Stylish and exquisite design
SG105 is nice and small and won't take up much desk or floor space. With desktop or wall-mounting design design , you can put SG105 anywhere as you want and move flexibly. It comes in a pretty dome-shaped pattern Plastic case. It will fit equally well in any desktop decor. Not only for Wired network use， SG105 also can be a home ornament.
Plug and play, no configuration required
SG105 is nice and small and won't take up much desk or floor space. With desktop or wall-mounting design design , you can put SG105 anywhere as you want and move flexibly. It comes in a pretty dome-shaped pattern Plastic case. It will fit equally well in any desktop decor. Not only for Wired network use， SG105 also can be a home ornament.
