协议
| 管理协议 |
SNMP v1&v2c |
| 动态主机配置协议服务器 |
Y |
安全
| 支持 SSID 数量 |
4 |
| 支持虚拟专用网 |
PPTP, L2TP |
性能
| 自动无线分布系统 (WDS) |
Y |
| VLAN支持 |
Y |
| 接收机灵敏度 |
b mode：1M -89dBm@8% 11M -87dBm@8% PER；\ng mode：54M -74dBm@8% PER；\nn mode：72.2M -72dBm@8% PER； 150M -70dBm@8% PER |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
| 调制 |
OFDM, DSSS |
| 2.4 GHz |
Y |
| 固件可升级 |
Y |
| 重启按钮 |
Y |
| 频段 |
2.4 - 2.483 GHz |
| 用户数量 |
20 user(s) |
天线
| 集成天线 |
Y |
| 天线数量 |
2 |
| 天线增益水平（最大值） |
2 dBi |
另外
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 数据传输率（最大） |
300 Mbit/s |
300Mbps, 2.4GHz, IEEE 802.11n/g/b, 64/128 WEP, WPA, WPA2, Gigabit Ethernet, white/grey

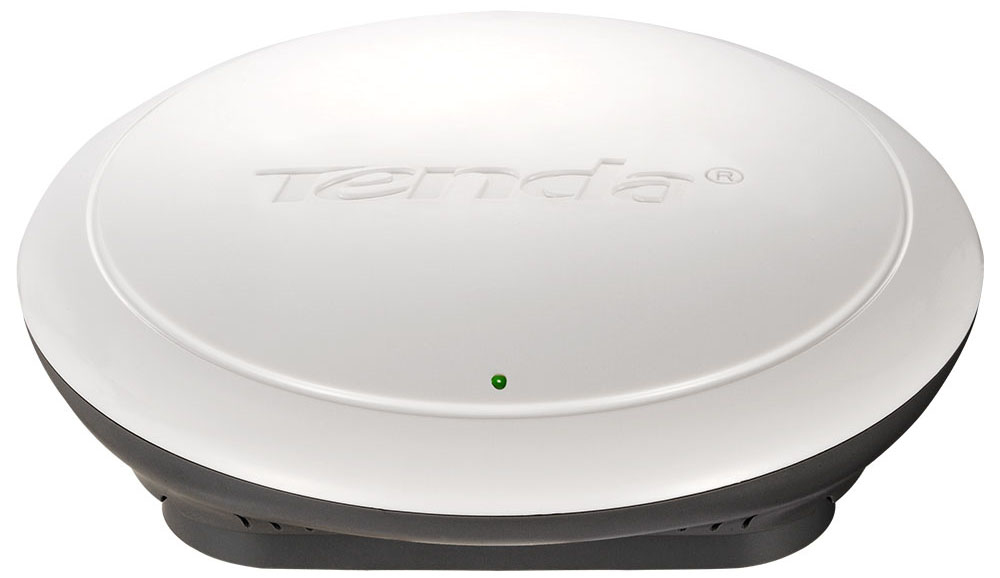

WH302A is a 300Mbps indoor ceiling access point for hotels, resorts, hospitals, office buildings, universities, or other multi-building campus environments that need to extend and expand an existing network wireless. Adopt Independent power amplifier to enhance wireless signal for client devices, such as wireless laptops, tablets and smartphones.With the aesthetic ceiling Design, WH302A can be deployed easily on ceiling or in crawlspaces.Also, WH302A can be deployed in areas where power outlets are scarce or not available with PoE 802.3at compliant.
<b>Ceiling Design</b>
With the aesthetic ceiling Design,WH302A can be deployed easily on ceiling or wall.
<b>High Power Design</b>
Adopt independent power implifier to provide 400mw RF transimit power. Thus, the wireless signal is stronger and the coverage is optimized.
<b>Wireless N300 Speed</b>
WH302A transfer rates of up to 300 Mbps on the 2.4 frequency bands for faster file transfers and smoother video streaming.
<b>Gigabit Ethernet Port</b>
Up to 10X faster data transfer than tradinational Fast Ethernet. Ideal for streaming videos, VOIP, music, and multimedia applications.
<b>Power Over Ethernet</b>
The port on the back panel is PoE 802.3at compliant , which allows both power and data to be carried over a single Ethernet cable to WH302A. So the WH302A can be deployed in areas where power outlets are scarce or not available.
<b>Industry Wireless Security</b>
WH302A offers multi-level wireless encryption options to prevent unauthorized access and protect your important data.
- 64/128bit WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2;
- Wireless Access Controll based on the mac address of wireless adapter.
<b>SSID to VLAN tagging</b>
WH302A can be configured to broadcast up to 4 SSID. Each SSID can be tagged to a specified network VLAN for different user access based on established access rights.
<b>Multiple Operation mode</b>
WH302A can be configured to work as wireless Access Point,WDS Repeater, Universal Repeater mode and help you expand existing network.
