性能
| 最小气流 |
35.3 cfm |
| 噪音水平（低速） |
21.7 dB |
| 噪音水平（高速） |
30.6 dB |
| 转速（最小） |
700 RPM |
| 转速（最大） |
1300 RPM |
| 类型 |
Fan |
| 适用于 |
Computer case |
| 风扇直径 |
140 mm |
| 风扇厚度 |
13 mm |
700 - 1300 rpm, 35.3 CFM, 6 - 13 V, 21.7 - 30.6 dB(A)

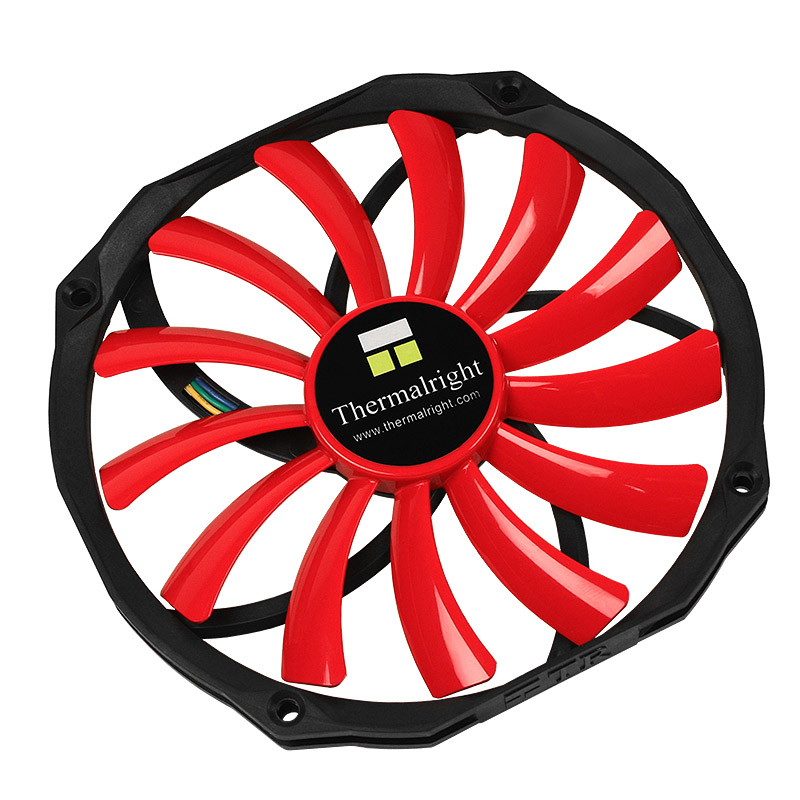

True to its motto "innovated - not imitated" Thermalright presents with the TY 14013R a slim fan sporting the innovative TY design. The fan is held in black and red.
The fan design of the TY14013R corresponds to the desire of users to realize the greatest possible airflow rate at the lowest possible noise. Naturally fans with a larger diameter will produce a higher capacity at the same speed and/or the same noise level than smaller models. Despite its particularly flat design the TY 14013R offers an air flow of more than 65 CFM.
The Thermalright TY 147 has the dimensions 140 x 152 x 13 mm; the mounting points are identical to those of conventional 120 mm fans. Owing to its sophisticated design, the inner diameter of the fan is even slightly greater than that of a conventional 140 mm fan. The TY 14013 is the ideal case fan for compact HTPC cases. Please check whether sufficient space is available to the sides.
The speed range of the temperature-controlled PWM-fan is 700 - 1,300 rpm - the flow rate varies between 35.3 and 65.3 CFM. For a sufficiently silent operation, the model uses seven blades in a special "torpedo" design. Together with the optimized wings and streamlined frame design, this causes a particularly effective and at the same time also very quiet air flow.
In order to guarantee a long-term low-noise operation, Thermalright makes use of a low-wear "Enhanced Hyper-Flow Bearing". The monitoring & control the fan speed is done via the motherboard (4-pin PWM connector).
