技术细节
方位角 |
Y |
额定转速 |
45, 33 1/3 RPM |
类型 |
Belt-drive audio turntable |
重量和尺寸
唱盘直径 |
304.8 mm |
唱盘重量 |
2300 g |
产品尺寸 (宽x高x深) |
470 x 125 x 430 mm |

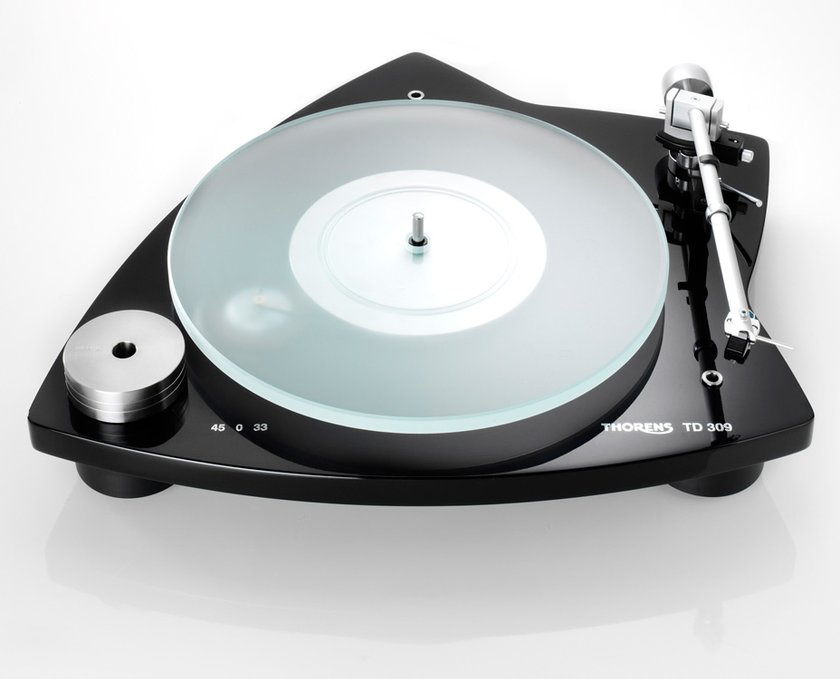

TD 309 Tri-Balance - 33-1/3, 45 rpm, AT-95 B, 30.48 cm (12 ") , 0.5W, 6.5kg, Glossy Black
The TD 309 sets new standards in analogue replay. The turntable's innovative three-point-suspension (Tri-Balance) ensures perfect balance in both mechanical and aesthetic terms. Form and function work in harmony to make the TD 309 a turntable that is guaranteed to reveal the magic of analogue replay.
The TP 92 tonearm, which was specially designed for the TD 309, uses an ultra-low-friction bearing and an innovative magnetic anti-bias system with zero stiction. The arm tube is made from rolled aluminium that is damped using random-mass-reducing technology. The brass counterweight at the end of the arm tube is double-decoupled, and the tonearm is so designed that its centre of gravity is level with the stylus.
- New innovative Tri-Balance suspended sub chassis turntable;
- New suspension system to make setting up easy;
- Low Noise, Low Voltage electronically speed controlled DC Motor;
- Adjustable belt tension for best performance;
- Aluminium sub platter with single line contact;
- Fused silica platter for consistency and sound quality;
- New low resonance TP 92 arm with precision Japanese bearings;
- Arm adjustable for azimuth and overhang.
