无线局域网的特点
| Wi-Fi 频段 |
Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi标准 |
IEEE 802.11ac |
| WLAN 数据传输速率(第二波段) |
433 Mbit/s |
| WLAN 数据传输速率(第一波段) |
450 Mbit/s |
| WLAN的数据传输率（最大值） |
883 Mbit/s |
联网
| 默认密码功能 |
Y |
| 接收机灵敏度 |
5GHz:\n11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm;\n11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9: -61.5dBm\n\n2.4GHz:\n11g 54M: -76dBm11n; HT20 MCS7: -74dBm;\n11n HT40 MCS7: -71dBm |
| 端口转发 |
Y |
安全
| 支持虚拟专用网 |
PPTP, L2TP, IPSec |
| 防火墙 |
Y |
协议
| 动态主机配置协议服务器 |
Y |
| 动态主机配置协议客户 |
Y |
| 支持网络协议 |
IPv4, IPv6 |
管理功能
| 网上管理 |
Y |
| 最小曲线半径 |
Y |
| 重启按钮 |
Y |
| 支持服务质量（QoS） |
Y |
天线
| 天线类型 |
External |
| 天线数量 |
4 |
| 发射功率 |
20 - 23 dBmW |
以太网LAN特性
| 以太网LAN接口类型 |
Fast Ethernet |
| 以太网的数据传输率 |
10, 100 Mbit/s |
WAN 广域网连接
| SIM卡插槽 |
N |
| DSL WAN |
N |
| 3G/4G USB 调制解调器的兼容性 |
N |
| 广域以太网 |
Y |
另外
| 以太网路(RJ-45)连接接口数量 |
4 |
| 以太网连接器 |
Y |
| 包括 AC 适配器 |
Y |
802.11ac, 2.4/5 GHz, 4x LAN, 1x WAN, WMM, QoS, 230 x 144 x 37 mm
- Supports 802.11ac standard - the next generation of Wi-Fi
- Simultaneous 2.4GHz 450Mbps and 5GHz 433Mbps connections for 883Mbps of total available bandwidth
- Four external antennas provide wireless coverage in every corner of your home
- Tether app and an intuitive web UI provide quick & hassle-free installation
<b>The New Wi-Fi Standard for an Advanced Online Experience</b>

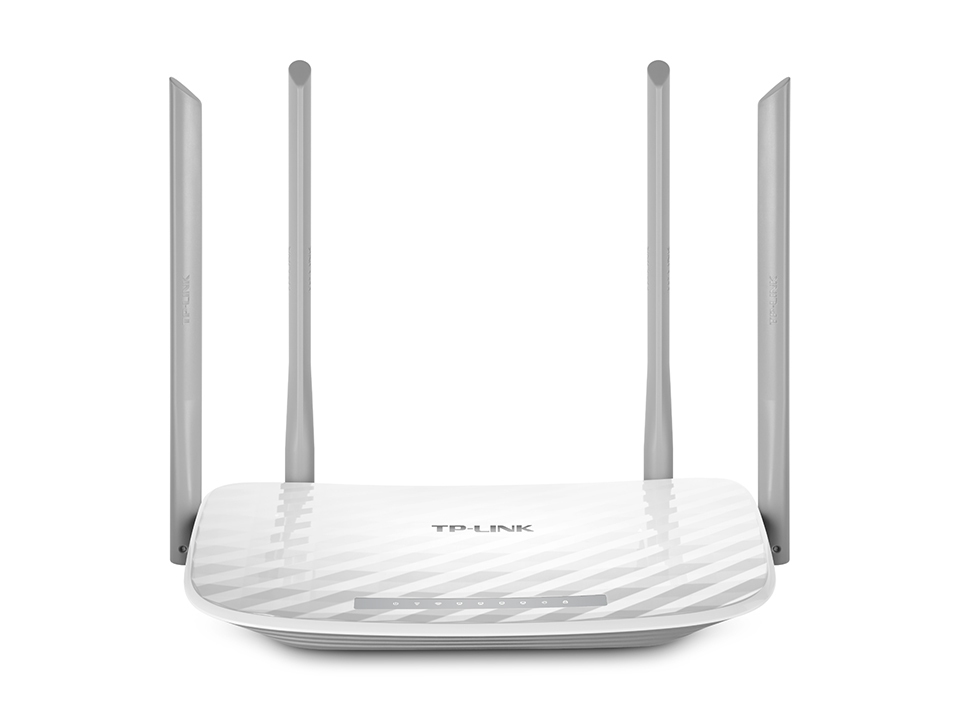

The Archer C25 comes with the latest wireless standard – 802.11ac. This advanced Wi-Fi is designed for high-traffic online activities and can help to run applications at triple the speed of the previous 802.11n standard. The result: faster, stronger and more capable Wi-Fi to unleash all your wireless devices.
<b>Four Antenna Design for Better Coverage</b>
Four antennas make all of your connections more efficient and stable. PA amplifies Wi-Fi power and LNA increases the receiving sensitivity to enlarge Wi-Fi coverage for your home.
<b>Easy Parental Control</b>
Supervise children and staff with responsible access, controlled by parents or administrators. Use URL blocking to easily set up a black or white list and limit the level of web access.
<b>Guest Network Access</b>
Allow guests to join your Wi-Fi network, while protecting your privacy. Make sharing easy, maintain security.
<b>Easy Setup and Management</b>
An intuitive, multilingual web interface (currently available in English, German, French, Italian, Polish and Turkish) makes PC setup of the Archer C25 easier than ever before. We also provide a new mobile interface for your convenience. Put control at your fingertips with Tether, an app that lets you manage network settings - including parental controls and media sharing - from any Android or iOS device.
