安全
| 防火墙 |
DoS, SPI |
| 支持虚拟专用网 |
PPTP, L2TP, IPSec |
| 支持安全算法 |
WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC（媒体存储控制）地址过滤 |
Y |
以太网LAN特性
| 布线技术 |
10/100/1000Base-T(X) |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
| 以太网LAN接口类型 |
Gigabit Ethernet |
软件
| 可支持的Linux操作系统 |
Y |
| 可支持的Mac操作系统 |
Y |
管理功能
| 通用即插即用（UPnP） |
Y |
| 支持服务质量（QoS） |
Y |
| 重启按钮 |
Y |
| 最小曲线半径 |
Y |
| 网上管理 |
Y |
其他功能
| 支持无线局域网数据传输率 |
6, 54, 450, 1300 Mbit/s |
| USB 端口数量 |
2 |
| xDSL connection |
N |
| 频率范围 |
2.4 - 5 GHz |
| 机架安装 |
N |
| 频段 |
2.4 & 5 GHz |
| USB版本 |
2.0 |
协议
| DMZ支持 |
Y |
| 动态主机配置协议客户 |
Y |
| 动态主机配置协议服务器 |
Y |
| 支持网络协议 |
IPv4, IPv6 |
无线局域网的特点
| Wi-Fi 频段 |
Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi标准 |
IEEE 802.11ac |
| WLAN的数据传输率（最大值） |
1300 Mbit/s |
| 无线局域网类型 |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
WAN 广域网连接
| 广域以太网 |
Y |
| 3G/4G USB 调制解调器的兼容性 |
Y |
| SIM卡插槽 |
N |
天线
| 天线类型 |
External |
| 天线增益水平（最大值） |
5 dBi |
| 天线接口类型 |
RP-SMA |
| 天线数量 |
3 |
| 可拆式天线（S） |
Y |
另外
| 以太网连接器 |
Y |
| 开/关切换钮 |
Y |
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
4 |

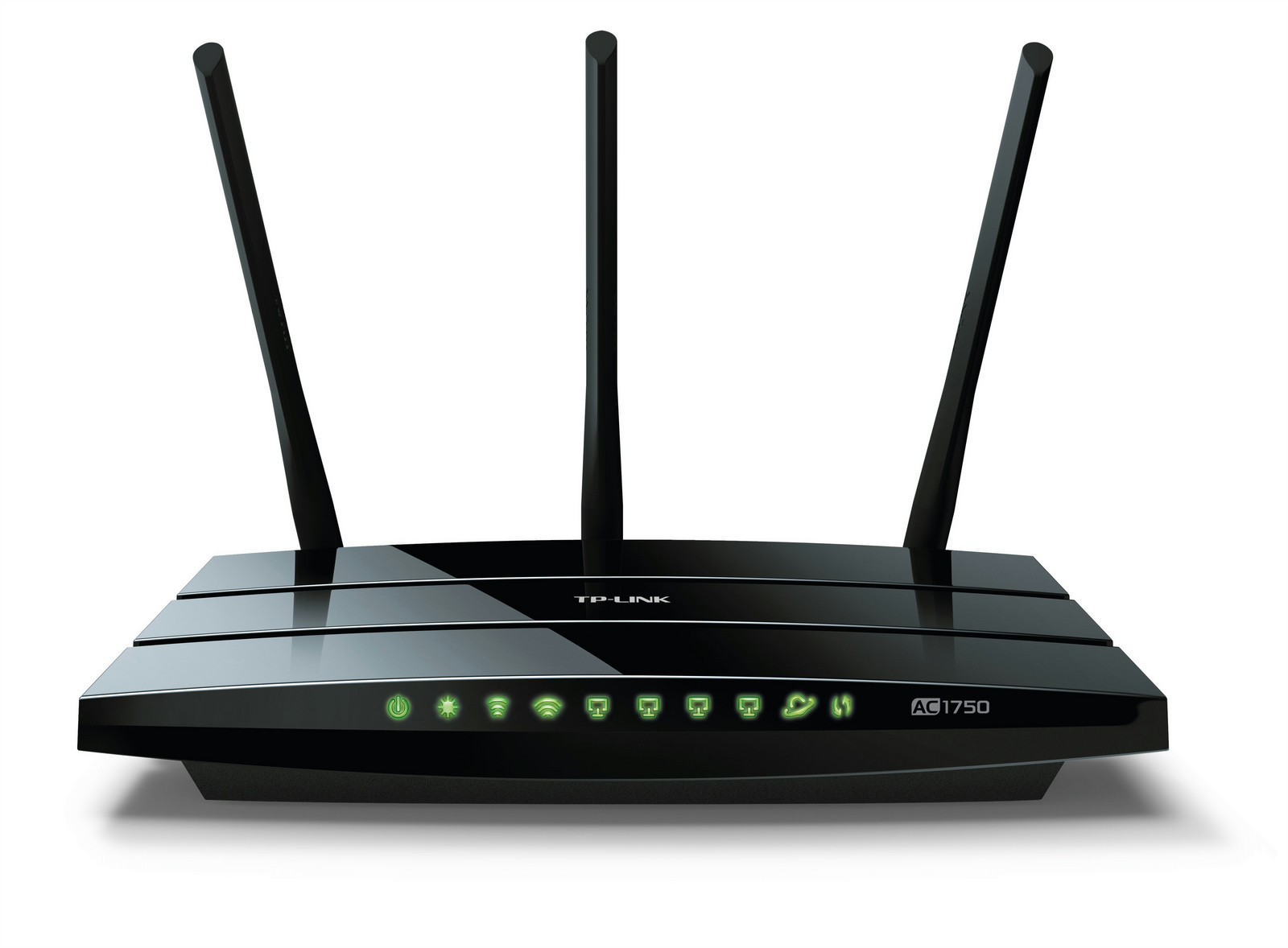

AC1750 Wireless Dual Band Gigabit Router, 1750Mbps, 450Mbps at 2.4Ghz + 1300Mbps at 5Ghz, 802.11a/b/g/n/ac, Gigabit Ethernet for 1 WAN port and 4 LAN ports, Wireless On/Off and WPS button, 2 USB ports for shared storage/FTP server/Media server/Print server, 3 external antennas, IPV6 ready
802.11ac - The Next Generation of Wi-Fi
TP-LINK’s Archer C7 comes with the next generation Wi-Fi standard – 802.11ac, 3 times faster than wireless N speeds and delivering a combined wireless data transfer rate of up to 1.75Gbps. With 1.3Gbps wireless speeds over the crystal clear 5GHz band and 450Mbps over the 2.4GHz band, the Archer C7 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
1.75Gbps Dual Band Connections for Lag-Free Work and Entertainment
The Archer C7 operates over both the 2.4GHz and 5GHz bands, ensuring amazing wireless performance. Simultaneous Dual Band offers you the flexibility of two dedicated networks – with multiple times the bandwidth for your needs. Simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.
6 Antennas for Fully Expanded Coverage
With 3 external 5dBi antennas serving the 5GHz band and 3 internal antennas serving the 2.4GHz band combined with higher quality antenna technology, you can maintain high speeds across greater distances. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office.
Full Gigabit Wired Connections for Ultrafast Data Transfer Speeds
With one gigabit WAN port and four gigabit LAN ports, speeds can be up to 10× faster than standard Ethernet connections. The Archer C7 is a powerful hub to support a robust and extremely fast wired network.
Dual Multifunctional USB Ports for Storage and Sharing
With the two multi-functional USB 2.0 ports, you can share printers, files and media with different devices through your local network or via the ftp server while away from home.
Guest Network
Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network.
Easy Set-up
Included in the resource CD, TP-LINK's optimized configuration utility can help users complete the entire software installation and wireless network settings in just a few minutes.
IPv6 Supported
Archer C7 supports IPv6, which is foundational to the next generation Internet and enables a range of new services and improved user experiences.
- Supports 802.11ac - The next generation of Wi-Fi
- Dual band – for combined wireless speeds of up to 1.75Gbps at 2.4GHz and 5GHz band concurrently
- 3x 5dBi external antennas and 3 internal antennas provide maximum Omni-directional wireless coverage and reliability
- Full gigabit ports ensure ultra fast data transfer speeds
- Dual USB Ports - easily share printers, files or media with your friends or family locally or over the Internet
- Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
- IPv6 supported, meeting the demands for the next generation of Internet
- IP-based Bandwidth Control makes it easier for you to manage the bandwidth of devices connected to the router
- Wi-Fi On/Off Button allows users to turn their wireless radio on or off
- Easy one-touch WPA wireless security encryption with the WPS button
- WPA-PSK/WPA2-PSK encryptions provide user networks with active defense against security threats
- Easy Setup Assistant with multi-language support provides a quick & hassle free installation process
- Compatible with 802.11 a/b/g/n/ac products
