内容包装
| 包含电缆 |
LAN (RJ-45) |
| 每包装商品数量 |
2 pc(s) |
| 快速安装向导 |
Y |
系统要求
| 可支持的Linux操作系统 |
Y |
| Mac兼容性 |
Y |
| 可支持的Windows操作系统 |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
性能
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
| 以太网LAN接口类型 |
Gigabit Ethernet |
| 内置电源插座 |
Y |
| 电力线标准 |
HomePlug AV2 |
| 支持安全算法 |
128-bit AES |
| 网络标准 |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 即插即用 |
Y |
| 无线局域网连接 |
N |
| 最高操作距离 |
300 m |
| 调制 |
OFDM |
能量控制
| 功耗（一般操作） |
2.49 W |
| 电流 |
13 A |
| 功耗（待机） |
0.45 W |
| 交流电（AC）输入电压 |
220 V |
| 交流电（AC）输入频率 |
50 Hz |
重量和尺寸
| 深度 |
70 mm |
| 宽度 |
126 mm |
| 高度 |
42 mm |
设计
| RoHS符合性 |
Y |
| 液晶显示器指示灯 |
LAN, PLC, Power |
| 认证 |
CE |
环境条件
| 储存温度范围 (T-T) |
-40 - 70 °C |
| 运行湿度范围(H-H) |
10 - 90% |
| 储存相对湿度范围（H - H） |
5 - 90% |
另外
| 产品色彩 |
White |
| 数据传输率（最大） |
1000 Mbit/s |
| 包装类型 |
Box |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 运行温度范围（T - T） |
0 - 40 °C |

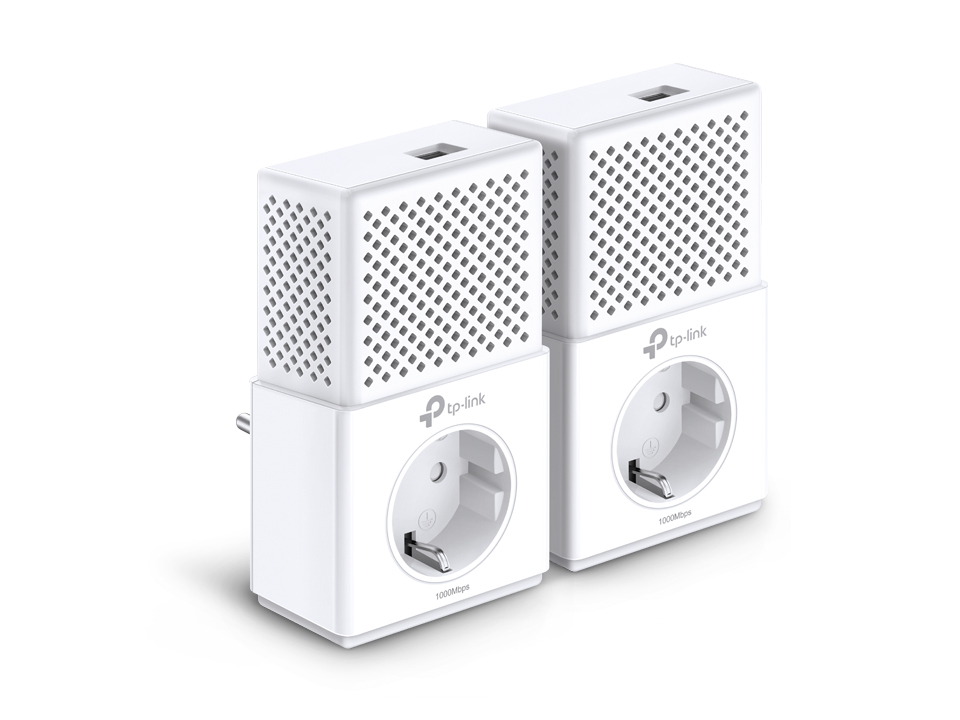

1x RJ-45, 300m, 1000Mbps, 16A, 5.8W, 128-bit AES, IEEE 802.3/u/ab
- HomePlug AV2 standard compliant, high-speed data transfer rates of up to 1000Mbps, supports all your online needs
- Gigabit port provides secure wired networks for desktops, smart TVs or games consoles
- Plug and play, no configuration required
- Patented Power-Saving Mode automatically reduces power consumption by up to 85%
1000Mbps!
Perfect for Bandwidth Demanding Activities
Coming with advanced HomePlug AV2 technology, TL-PA7010P KIT provides users with high-speed data transfer rates of up to 1000Mbps, which is ideal for bandwidth intensive applications such as multiple HD/3D/4K video streaming, online gaming and large file transfers.
Gigabit Port for
Ultra-fast Datasheet Transfer
With one Gigabit Ethernet port, TL-PA7010P KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA7010P KIT the perfect home entertainment companion.
Plug and Play,
No Configuration Required
Connect a powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet - and you’re done!
Extra Power Socket for Additional Devices
Where sockets are at a premium, the TL-PA7010P KIT with an integrated AC pass-through power socket, means the powerlines can be used like a traditional electrical socket. Plug your smart TV or games consoles into the powerlines, as if it were a normal plug socket. No socket needs to go to waste. The built-in noise filter helps to prevent electrical signal noise from affecting powerline performance.
Power Save by Up to 85%
TL-PA7010P KIT,a new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to "Power-Saving" mode reducing its energy consumption by up to 85%*.
*Actual data will vary in different network conditions and environments.
