端口 & 界面
| DC-IN插口 |
Y |
| 广域网接口 |
Ethernet (RJ-45) |
性能
| 网上管理 |
Y |
| 重启按钮 |
Y |
| 支持服务质量（QoS） |
Y |
| 频段 |
2.4 - 2.4835 GHz |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
| 2.4 GHz |
Y |
| 5 GHz |
N |
| 发射功率 |
26 dBmW |
| 接收机灵敏度 |
300M: -71dBm@10% PER\n150M: -75dBm@10% PER\n54M: -78dBm@10% PER\n11M: -93dBm@8% PER\n6M: -92dBm@10% PER\n1M: -96dBm@8% PER |
能量控制
| 输入电流 |
1 A |
| 支持以太网（PoE） |
Y |
| 输入电压 |
12 V |
天线
| 天线增益水平（最大值） |
4 dBi |
| 天线数量 |
2 |
| 集成天线 |
Y |
协议
| 支持网络协议 |
Telnet |
| 管理协议 |
SNMP v1,v2c, HTTP/HTTPS |
另外
| 开/关切换钮 |
Y |
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 数据传输率（最大） |
100 Mbit/s |

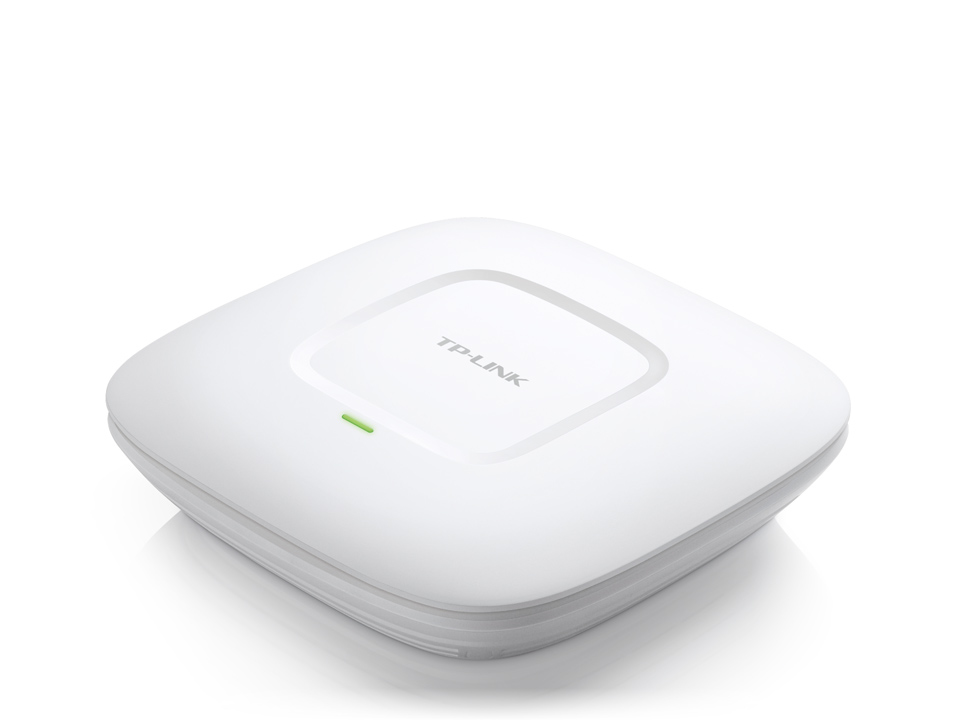

300Mbps Wireless N Gigabit Ceiling Mount Access Point, 8x EAP120, 1x TL-SG1008PE
- EAP Controller Software enables administrators to easily manage hundreds of EAPs*
- Support Power over Ethernet（802.3af）for convenient and affordable installation
- Simple mounting design to easily mount to a wall or ceiling
- Captive portal provides one convenient method of authentication for WiFi guests
- WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
- Gigabit Ethernet port enables bandwidth-intensive application or multimedia transferring
<b>Business Class Wireless</b>
<b>Powerful Hardware</b>
<b>EAP features 802.11n Wi-Fi and 2*2 MIMO technology</b>
<b>- EAP220 supports simultaneous dual band in 2.4 and 5GHz for 600Mbps wireless speeds</b>
- EAP120’s wireless speeds of up to 300Mbps
Gigabit Ethernet port ensures high speed
Internet access
With Qualcomm Atheros 560MHz chipsets ,
EAP ensures incredible wireless coverage and reliability
<b>Centralized Wi-Fi Management</b>
<b>Management Software</b>
The free controller software allows administrators to easy manage up to hundreds of EAPs through a single IP to like an Access Controller.
<b>Efficient Guest Authentication Captive Portal</b>
Captive portal provides one convenient method of authentication for Wi-Fi guests. A captive portal requires users to perform certain actions before network access is allowed. The required action must be verified by an external portal server or customized database by the administrator, which can be simply viewing and agreeing to an acceptable use policy, or entering a user ID and password.
<b>Applicable to Multi-user Environment</b>
<b>Designed for Business Performance</b>
With easy mounting design, PoE power supply, Cluster feature, Centralized management software, Captive portal, Auto RF management, and business hardware, EAP series are specially designed for the high-density, most demanding business environments, including schools, hotels, and enterprises.
