其他功能
| 下行数据率 |
24 Mbit/s |
| 上行数据速率 |
1 Mbit/s |
| 机架安装 |
N |
| 输入电压 |
9 V |
| 频段 |
2.4 GHz |
| 输入电流 |
0.85 A |
| 带宽 |
2.4835 GHz |
| 内置调制解调器 |
Y |
| xDSL connection |
Y |
安全
| 支持虚拟专用网 |
PPTP, L2TP, IPSec Pass-through |
| MAC（媒体存储控制）地址过滤 |
Y |
管理功能
| 通用即插即用（UPnP） |
Y |
| 网上管理 |
Y |
| 重启按钮 |
Y |
| 支持服务质量（QoS） |
Y |
无线局域网的特点
| Wi-Fi标准 |
IEEE 802.11n |
| 无线局域网类型 |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| WLAN的数据传输率（最大值） |
300 Mbit/s |
以太网LAN特性
| 以太网LAN接口类型 |
Fast Ethernet |
| 以太网的数据传输率 |
10, 100 Mbit/s |
天线
| 可拆式天线（S） |
Y |
| 天线接口类型 |
RP-SMA |
| 天线增益水平（最大值） |
3 dBi |
| 天线类型 |
external |
| 天线数量 |
2 |
另外
| 开/关切换钮 |
Y |
| 以太网连接器 |
Y |
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
4 |
802.11 b/g/n, 300 Mbps, ADSL2+, 1 x RJ11, 4 x RJ45, 2 x 3 dBi, White
<b>What This Product Does</b>

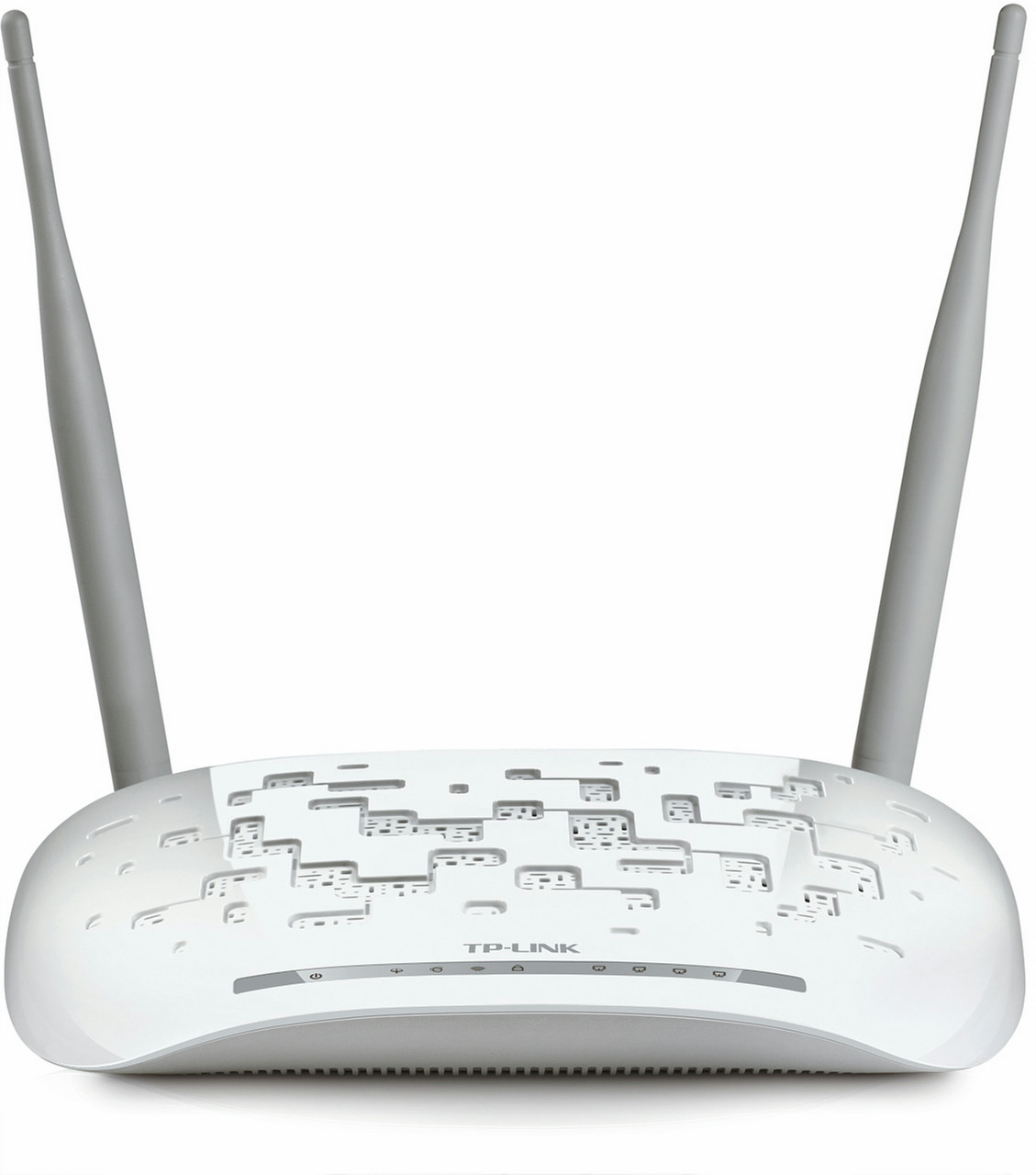

The TD-W8961ND Wireless N ADSL2+ Modem Router is an All-in-One device that combines the functions of a high speed ADSL modem, a 4-Port 10/100Mbps NAT router and a wireless access point. It is designed to provide end-users with a one-stop solution to acquiring and sharing high-speed Internet access over a wired/wireless network. Supporting the latest ADSL standards, the TD-W8961ND brings with it much higher speed than dial-up connections. Complying with the IEEE 802.11n standard, users will get up to 15X the speed and 5X the range of conventional 11g products. With this product, users can now enjoy more kinds of heavy bandwidth consuming applications like wireless HD video streaming, not possible with 11g products, from anywhere in their entire homes or even in their backyards!
<b>One-Stop Solution</b>
As a 3-in-1 device, the TD-W8961ND combines the functions of a high speed DSL modem, a 4-Port 10/100Mbps NAT router and a wireless N access point. Using a telephone line the TD-W8961ND establishes a high-speed ADSL2+ Internet connection. Once set up, the device's wired/wireless functions can be used to share media between devices, browse the Internet, talk on an IP phone, or even stream HD video. Save time and money using one device instead of multiple devices that take longer to set up and occupy more cluttered space.
<b>Access High-Speed Internet</b>
Unlike dial-up Internet service, a DSL Internet connection is always on, so users need not dial up or wait to access the web. Supporting the latest ADSL standards, the TD-W8961ND provides higher performance (up to 24Mbps downstream) and longer reach from user's local Internet Service Provider (ISP). This device also supports TR-069, which automatically updates the device's firmware and other settings when they become available from the ISP.
<b>Exceptional Wireless Performance</b>
TD-W8961ND is a high-speed solution that complies with IEEE802.11n standards with wireless transmission speeds of up to 300Mbps. It adopts MIMO technology, has two detachable Omni directional antennas providing better wireless performance, transmission rates, stability and coverage. Users can get up to 15x the speed and 5x the range of conventional 11g products and share high-speed DSL Internet connections, photos, music, files, and even heavy bandwidth consuming applications like wireless HD video streaming, something not possible with 11g products, from anywhere in their entire homes or even in their backyards!
<b>Ideal for Multimedia Application</b>
Port VLAN binds specific LAN ports and PVCs for differential services like IPTV. The TD-W8961ND's built-in QoS engine provides various QoS policies that help prioritize Internet traffic to enable smooth IPTV streaming and lag-free online gaming. Thus users can experience the benefits of a smooth network connection without worrying about traffic congestion. Combined with IGMP multicast and IGMP snooping features the TD-W8961ND makes an ideal solution for multimedia applications.
<b>Advanced Network Security And Flexible Management</b>
The TD-W8961ND utilizes NAT and SPI (stateful packet inspection) firewalls which inspect the contents of incoming packets before they are allowed in, preventing potential attacks from across the Internet. For added convenience, it supports access control based on MAC addresses, IP addresses, domain names or applications such as MSN or Yahoo Messenger, so that parents and network administrators can establish restricted access policies for children or staff. Aside from web configuration, the TD-W8961ND also provides TR-069 and SNMP, which automatically update the device's firmware and other settings when they become available from users'ISP. All of these features help users to enhance their network's security and make network management more flexible.
<b>WPS One Button Security</b>
To setup their network's security encryption, users need simply to press the "WPS" button on their TD-W8961ND, then push the "WPS" button or enter the router's PIN Code in the wireless client, and it will automatically establish a WPA secure connection. Not only is this faster than normal security setups but more convenient in that users don't need to remember a password!
<b>Easy To Use</b>
Easy Setup Assistant with multi-language support is provided in the product CD. Users can select their native language when setting up their device and complete Internet connection setup, wireless network settings and security configurations without the use of a multilingual dictionary. This benefit allows even novice users to setup their products without sacrificing any key features. Users need simply insert the TD-W8961ND's bundled Auto-Run CD to have their networks set up quickly and hassle-free in minutes.
