管理功能
| 通用即插即用（UPnP） |
Y |
| 支持服务质量（QoS） |
Y |
协议
| DMZ支持 |
Y |
| 动态主机配置协议客户 |
Y |
| 动态主机配置协议服务器 |
Y |
| 支持网络协议 |
TCP/IP, ICMP, PPPoE, SNTP, HTTP |
环境条件
| 运行温度范围（T - T） |
32 - 104 °F |
另外
| 连接方式 |
Wired |
| 过滤 |
IP, ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD |

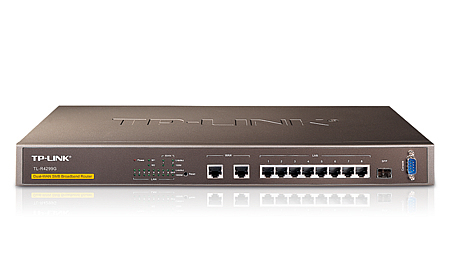

TL-R4299G, 10-port, WAN/LAN, Fast Ethernet, Auto MDI/MDIX, RS232, PPPoE
The Dual-WAN SMB Broadband Router TL-R4299G is based on Intel XScale technology and adopts multi-CPU distributed processing; main frequency is up to 533MHz to ensure high performance and high availability. Additionally, the 6-layer PCB, the built-in high-redundancy power module and the 19-inch rack-mountable steel case feature a new architecture that dramatically stretches the performance of the router by enabling stable connections.
The TL-R4299G features two WAN ports, which allows two connections to the Internet at the same time, provides you double-bandwidth access, and gives the ability to enjoy more Internet sources from different ISPs. ISP server addresses can be added by hand and support direct introduction of text format of address table. Lines of the same ISP divert automatically. The internal automatic line diversion strategy can distribute data streams according to the bandwidth proportion and occupancy rate to raise the utilization rate of dual-line broadband. The customers can truly experience multi-line broadband through the full use of multi-line resources. With fail-over and automatic load balancing, no manual work should ever be required.
The TL-R4299G provides all the normal settings of a broadband router, it features much more advanced functions, such as Bandwidth Control, Port Mirror, Port VLAN, IEEE 802.1x Authentication, UPnP, DDNS, VPN Pass-through, Firewall and System Log; has the function of integrated management of switch and supports VLAN and port mirroring.
The TL-R4299G provides IP based bandwidth control and connection session configuration function. The administrator can set the bandwidth and connection session of each internal computer. It supports IP and MAC binding which can efficiently avoids the attack of ARP. Start binding IP with MAC when the network is normally operated, the corresponding relation of the MAC and IP of each internal computer will be restored in the buffering table of router.
The TL-R4299G provides a friendly configuration interface for easy use. With multiple functions, high-reliability, and high-security, it widely meets SMB (Small and Medium Business), organ, Internet cafe, broadband community, and school networks new and changing requirements.
- Intel IXP Network Processor, Multi-CPU distributed processing, main frequency up to 533MHz;
- Fully complies with IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3x, 802.1x standards;
- Supports TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS;
- Automatically selects the best line according to the load;
- Provides dual-bandwidth and supports Load Balancing;
- Supports network service detection;
- IP address and port based QoS, allow to limit the bandwidth of a single station;
- Built-in basic managed switch, supports Bandwidth Control, VLAN and Port Mirror;
- Supports UPnP, DDNS, VPN pass-through;
- Built-in firewall supporting IP address filtering, Domain Name filtering, and MAC address filtering;
- Supports Virtual Server, Special Application, DMZ host and Static Routing;
- Supports session configuration, limit the connecting session of a single station;
- Provides Scan and DoS attack defence, Dubious Packet Defence, avoiding network attack and virus;
- Supports IP and MAC address binding, avoiding ARP attack effectively;
- Supports MAC address Clone and MAC modification;
- Supports Backup configuration and restore;
- Supports Https security management;
- Web based management and remote management, firmware upgrade;
- Standard 19-inch rack-mountable steel case.
